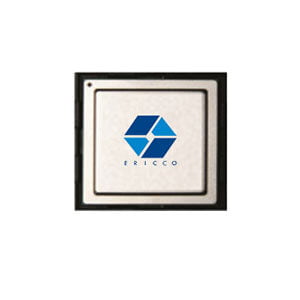

High Performance Floating-point DSPC
ER-DSPC-20A
1. Dual-core architecture, rich interface;
2. Directly connected to AD/DA to form a minimum system;
3. Autonomous embedded operating system.
Integrated Circuit

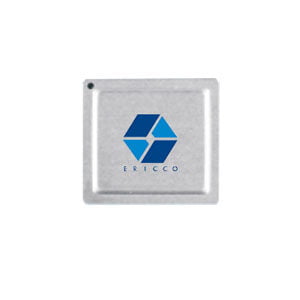

Military-grade Digital Signal Processor
ER-DSPC-20B
1. Based on the independent architecture EC104E core;
2. SIMD+VLIW architecture;
3. Meet military temperature requirements;
High Performance 8-core Floating Point DSP
ER-DSPC-30
1. High-performance 8-core floating-point;
2. Efficient three-level storage structure;
3. High-Speed Interface.

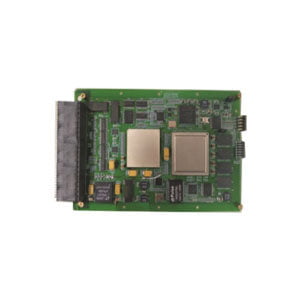

Universal Interface Board
ER-DSPB-3U1
1. Work Temperature: -40°C~70°C;
2. Storage Temperature: -55°C~125°C;
3. Power Consumption: ≤35W.

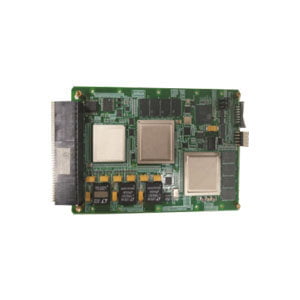

Economical Signal Processing Board
ER-DSPB-3U2
1. Storage Temperature: -55°C~+125°C;
2. Power Consumption: ≤45W;
3. Heat-dissipating Method: Cooling Conduction.

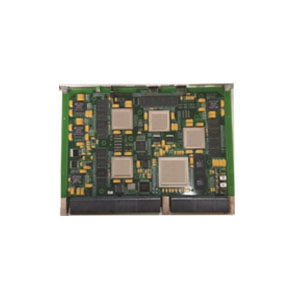

High Performance Signal Processing Board
ER-DSPB-6U1
1. Work Temperature: -40°C~70°C;
2. Storage Temperature: -55°C~125°C;
3. Power Consumption: ≤60w.

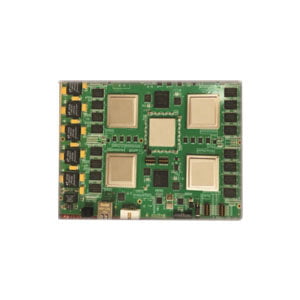

Universal Signal Processing Board
ER-DSPB-6U2
1. Work Temperature: -40°C~70°C;
2. Storage Temperature: -55°C~125°C;
3. Power Consumption: ≤60W.

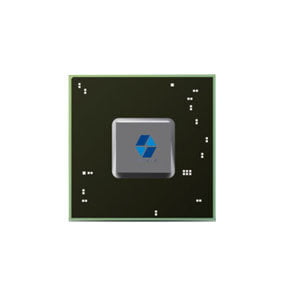

Low Power Consumption CPU
ER-CPU-20K
1. Master frequency: 500~800MHz;
2. Microarchitecture: Double emission out of order execution;
3. Single-core 64-bit.
.
Integrated Temperature Sensor CPU
ER-CPU-21K
1. Integrated and shared 1MB Level 2 Cache;
2. Integrated GPU;
3. Integrated display controller, supporting dual-channel DVO display.

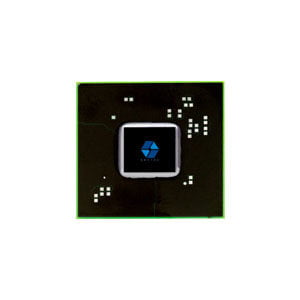

Dynamic Frequency and Voltage Reduction CPU
ER-CPU-21KLA
1. Master Frequency: 1GHz;
2. Microarchitecture: Double emission out of order execution Arch;
3. Power Consumption 1~5W (support dynamic frequency and voltage reduction)
.

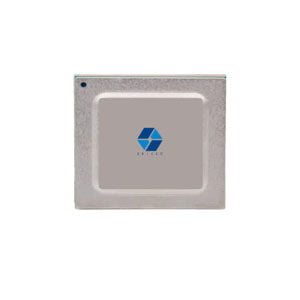

Integrated Dual Processor Core CPU
ER-CPU-22K
1. Integrated 72-bit DDR4 Controller (including 8-bit ECC);
2. Integrated two SATA3.0 interfaces;
3. Adopt FC-BGA encapsulation.

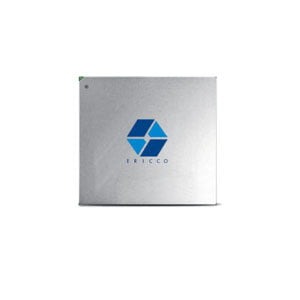

Strong Driving Force CPU
ER-CPU-35A/35B
1. Based on New Arch™;
2. High bandwidth memory interface: Support DDR4-3200, the actual bandwidth is more than 25GB/s;
3. Integrated Eco-compatibility: Real-time translation for applications with different architectures.

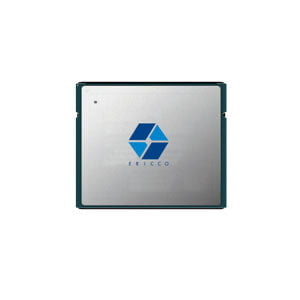

High Efficiency Cloud CPU
ER-CPU-35C
1. New instruction system;
2. High-end multiplexing;
3. High system performance.

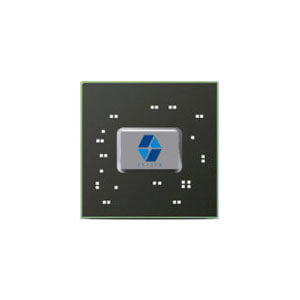

Economical CPU
ER-CPU-71A
1. Graphics card memory: 16-bit DDR3 controller;
2. Supports dual-channel DVO display;
3. Power Consumption5-8W.

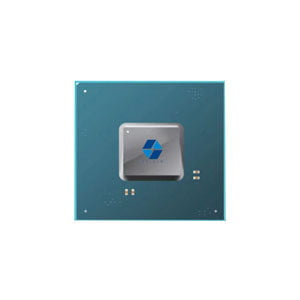

Independent Display Bridge CPU
ER-CPU-72A
1. Supports up to 16GB video memory capacity;
2. PCIE, USB, and SATA are all upgraded to 3.0;
3. One GMAC network port +1RGMII port.
