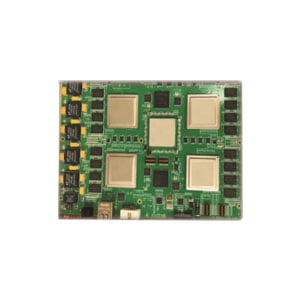

Universal Signal Processing Board
Product Profile
The ER-DSPB-6U2 core device of the universal signal processing board is 4 pieces “ER-DSPC-20A”, which meets the Open VPX standard and provides hardware guarantee for high-speed real-time radar tasks such as radar, image processing, sonar instrumentation and medical electronics.
Technical Indicators
Processing Capacity:
4pieces HXDSP1042 computingpower: 336GFLOPS
Storage Capacity:
DSP external DDR3 memory, total capacity: 16GBytes
DSP chip external 128Mb SPI NORFLASH used for DSP Boot

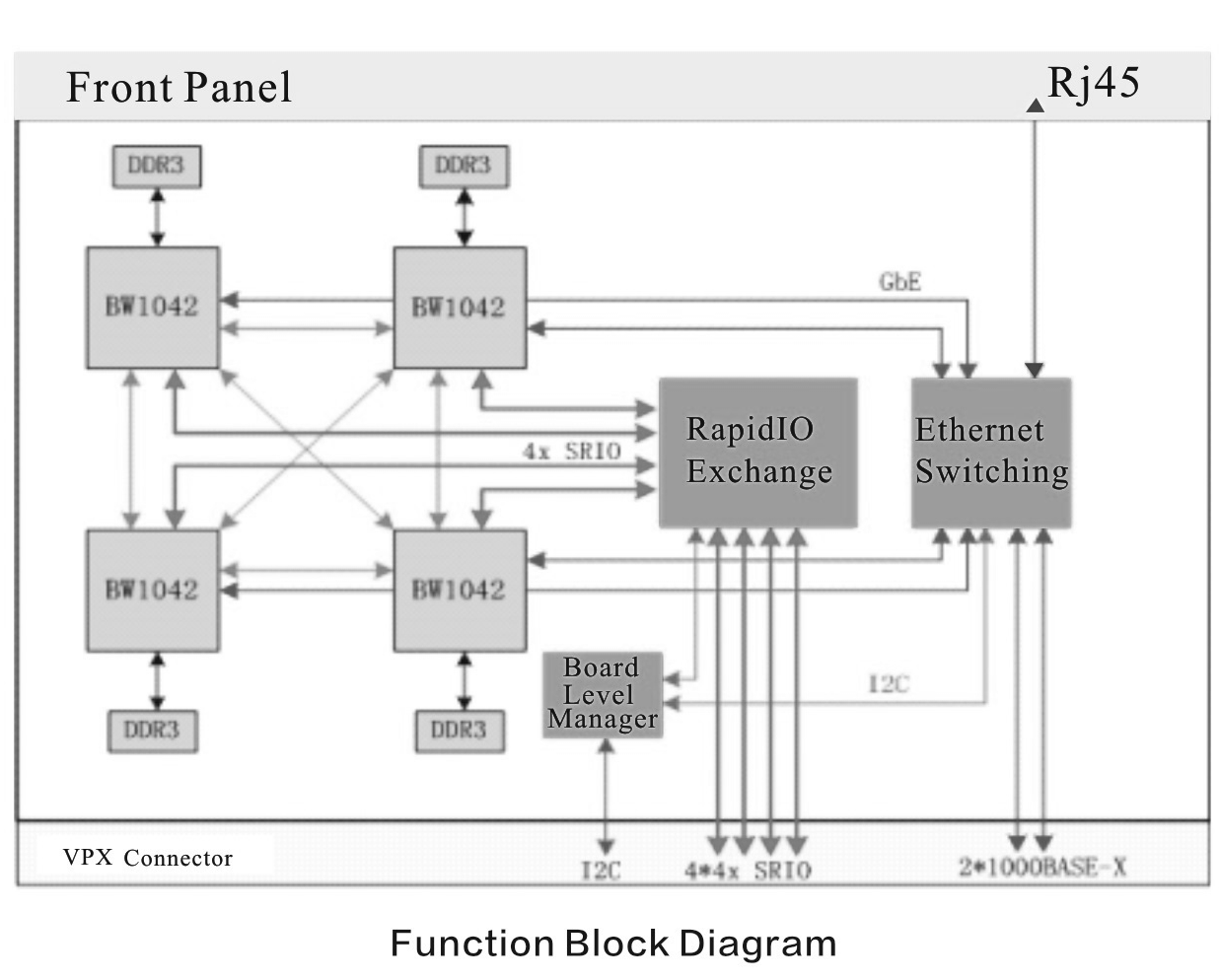

Interconnect Bandwidth:
4 sets of 4x interfaces of RapidIO switching chip (48lanes) connect VPX interface, and 4 sets of 4x interfaces connect 2 sets of Rapid IO interfaces of four DSP.The maximum line rate can reach 5 Gbps.
Switching Network:
SGMII interface on board is convertedto GBE interface for debugging and program update.
Other:
Power-on self-test and function detection, faults canbe located to the main chip, DSP program update can be realized through the network and Rapid IO.
Physical Characteristics:
Size: Standard 6U board
Work Temperature: -40°C~70°C
Storage Temperature: -55°C~125°C
Power Consumption: ≤60W
Heat-dissipating Method: Cooling
Conduction and Air Cooling
