Independent Display Bridge CPU
Introduction

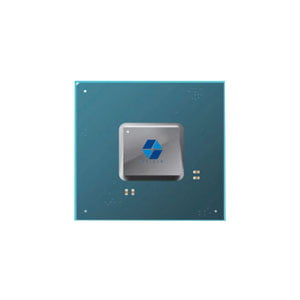

ER-CPU-72A is the second generation Ericco No. 3 series processor with independent display bridge for server and personal computer fields. ER-CPU-72A optimization and upgrade based on the first generation bridge piece ER-CPU-71A. First, a self-developed GPU is integrated on the chip for the first time, using a unified rendering architecture, paired with 32-bit DDR4 video memory interface, and supports up to 16GB video memory capacity; Second, PCIE, USB, and SATA are all upgraded to 3.0. The display interface has been upgraded to 2ed-channel HDMI and 1st-channel VGA for direct display connection. In addition, a network PHY is built in directly provides network port output, reduces board cost and eliminates the dependence on foreign network PHY chips, further improving the degree of autonomy.
Parameters
| Processor interface | HT3.0 x16 3.2Gbps |
| PCIE | PCIE3.0 Controller, 32lane, x4+x4+x8+x16 |
| GPU | Support 3D |
| SATA | 4 SATA3.0 ports |
| USB | 4 USB3.0 + 8 USB2.0 |
| Network | One GMAC network port +1RGMII port |
| Graphics card memory | 32-bit DDR4-2400 Controller |
| Display | HDMI*2+VGA |
| Audio | HDA+I2S |
| Other interface | SPI、LPC、I2C*6、CAN*4、UART、GPIO |
