Logging Tool/Gyro Tool

Ericco provides high precision and low cost logging tools/gyro tools to the customers worldwide, the quality and after service are proven to be well guaranteed. Ericco also customizes various logging tools/gyro tools according to the customers' special requirements. Just come and get more details with us.

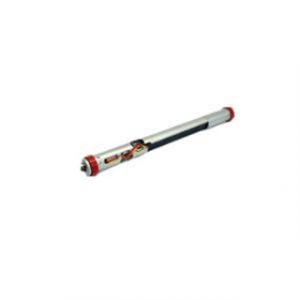

Mems Orientation Module To Replace Fluxgate

MEMS Gyro Directional Module(Can replace fluxgate directional module)

ER-Gyro-19
1.Adopt the latest three-axis MEMS gyro, three-axis MEMS accelerometer strapdown inertial measurement technology, replace the fluxgate sensor in situ;
2.The azimuth and tool face angle can be output normally at small well inclination, with the accuracy kept within 3°;
3.Subverting the size of traditional gyro tools, extremely small, width 19mm, length 136.8mm, which can be easily embedded in narrow front-end spaces such as probes.

.

North Seeking Mems Imu For Gyro Tools 3 (1)

MEMS Gyroscope Directional Module for GWD

ER-Gyro-15
1.The azimuth and tool face angle can be output normally at small well inclination, with the accuracy kept within 3°;
2.Adopt the latest three-axis MEMS gyro, three-axis MEMS accelerometer strapdown inertial measurement technology;
3.Subverting the size of traditional gyro tools, it is extremely small, with optional diameters of 25.4/30mm and a length of 120mm, which can be easily embedded in narrow front-end spaces such as probes.

North Seeking Mems Imu.jpg

North-Seeking MEMS IMU

ER-MIMU-051
1. Size:70*65*45(with shell)/43.2*43.2*35.5 (without shell and baseboard);
2. OEM, modular design, strong applicability;
3. Can find north independently.

High Precision Navigation Mems Imu

High Accuracy North-Seeking MEMS IMU

ER-MIMU-061
1. Smallest volume: 38.6mm x 44.8mm x25.5mm;
2. Range can be selected;
3. Light weight: ≤70g.

North Seeking Mems Imu For Gyro Tools 3 (1)

North-Seeking MEMS IMU for Gyro Tools

ER-MIMU-091
1. Mini Diameter: 120mm x Φ30mm;
2. Light weight: ≤150g;
3. Temperature compensation: -40℃~ + 80℃ / -40℃~ + 125℃.

High Precision MEMS Gyroscope

High Performance North Seeking MEMS Gyroscope

ER-MG2-50/100 (0.01-0.02°/hr)
1. 0.01-0.02°/hr bias instability;
2. 0.0025-0.005°/√hr angular random walk;
3. Small size: 11x11x2mm.

High-temperature North Seeking MEMS Gyro For Gyro Tools（125°C）

High-temperature North Seeking MEMS Gyro For Gyro Tools(125°C)

ER-MG2-022(<0.02°/hr)
1. <0.02°/hr bias instability;
2. <0.025°/ √h angular random walk;
3. <0.1°/hr bias stability.

High Temperature Quartz Accelerometer (Ф25mm)

High Temperature Quartz Accelerometer (Ф25mm)

ER-QA-03D (-55~180℃):
1. High-Temp 180℃;
2. Small Size Ф25×21mm;
3. Anti-shock 500-1000g 0.5ms.

High Temperature Quartz Accelerometer (Φ18.2)

High Temperature Quartz Accelerometer (Φ18.2)

ER-QA-03F (30 μg):
1. Bias repeatability: 150-220ug;
2. Scale factor repeatability: 150-220ppm;
3. Class II non-linearity repeatability: 40-50μg/g2.

Dynamic Direction Sensor

Dynamic Fluxgate Directional Assembly

ER-DOS-03 (0~180°±0.1°) Features:
1. High temperature resistant;
2. Resistance to vibration and shock;
3. Dynamic measurement under rotation;
4. Low power consumption.

Economical Directional Sensor

Economical Fluxgate Directional Assembly

ER-OS-05 (0°~180°±0.1°) Features:
1. Small size;
2. High precision;
3. Anti-vibration;
4. Anti-impact.

High Precision Directional Sensor

High Precision Fluxgate Directional Assembly

ER-OS-07 (±0.1°) Features:
1. Temperature: -40℃~150℃;
2. Accurate measurement under strong vibration environment with 16g peak value (20Hz~100Hz);
3. Shock resistance 1000g, vibration resistance 20grms;
4. Digital data transmission;
5. With minimum size of Φ31mm×384mm (customized to different needs).

High Temperature Directional Sensor

High Temperature Fluxgate Directional Assembly

ER-OS-07H (±0.1°) Features:
1. Temperature: 0~175℃;
2. Accurate measurement under strong vibration environment with 16g peak value (20Hz~100Hz);
3. Shock resistance 1000g, vibration resistance 20grms;
4. Digital data transmission;
5. With minimum size of Φ31mm×384mm (customized to different needs).

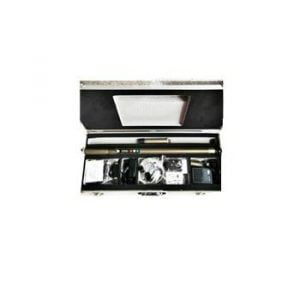

Low Cost Singleshot & MultiShot Inclinometer

Low Cost Singleshot & MultiShot Inclinometer

ER-SMLT-01 (0~180°±0.2°)
1. Inclination: ±0.2°;
2. Azimuth: ±1.0°;
3. Tool face: ±0.5°.

Oil and Gas Quartz Pressure Sensor

Oil and Gas Quartz Pressure Sensor

ER-QPS-19 Features:
1. High temperature and high pressure type quartz pressure sensor;
2. High reliability and high precision characteristics.

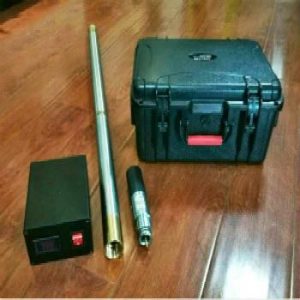

FOG Continuous Gyro Tools

FOG Continuous Gyro Tools

ER-Gyro-04 (0°~90° ±0.1°) Features:
1. Inclination: ±0.1°; azimuth: ±1.0°; tool face angle: ±0.5°;
2. Automatic north seeking without ground calibration;
3. Continuous measurement; wired and storage mode;
4. High reliability, stability and precision, easy operation.

High Temperature Wireline Directional Sensor

Wireline Fluxgate Directional Assembly

ER-WOS-08 (±0.1°) Features:
1. Small volume;
2. Compact structure;
3. Strong vibration resistance;
4. High reliability.

High Temperature Wireline Directional Sensor

High Temperature Wireline Fluxgate Directional Assembly

ER-WOS-08H (±0.1) Features:
1. Small volume;
2. Compact structure;
3. Strong vibration resistance;
4. High reliability.

Three Axis Gyro Tools FOG

Three Axis Gyro Tools FOG

ER-FOG-30C (≤0.3°/h φ32) Features:
1. Dimension: φ32*1084mm;
2. Bias stability: ≤0.3 (°)/h;
3. Measuring range: ±120 (°)/s.

Gyro Tools FOG

Gyro Tools FOG

ER-FOG-60C (≤0.3°/h) (φ64) Features:
1. Dimension: φ64*450mm;
2. Bias stability: ≤0.3 (°)/h;
3. Measuring range: ±100 (°)/s.

NonMagnetic Logging Tools Calibration Set

NonMagnetic Logging Tools Calibration Set

ER-GTCS-01 (0°~180°± 2′):
1. Very high precision;
2. Robust structure;
3. Excellent stability.

Simple Inclinometer Calibration Set

Simple Inclinometer Calibration Set

ER-GTCS-02 (0°~180°± 0.1°):
1. Light weight structures;
2. Easy to use;
3. Non-magnetic.
