North Seeker

Ericco provides high reliability and low cost north seeker/finder/seeking system/alignment system to the customers worldwide, the quality and after service are proven to be well guaranteed. Ericco not only provides the standard north seeking products, but also provides various north seeking solutions according to the customers' special requirements. Just come and get more details with us.

The north finder/north seeker is an inertial device that measures the true north azimuth. It is mostly used in mining, oil drilling, tunnel construction and other fields, because these industries work in harsh environments, so being able to cope with harsh environments is essential. The composition of the north finder is very similar to that of the inertial system, consisting of a gyroscope, an accelerometer, and the corresponding algorithm. You can also understand that by adding an IMU (Inertial Measurement Unit) to the north finding algorithm, we can get a north finding system, that is the north finder.

FAQ About North Seeker/North Finder:
1. Breaking through tradition! New MEMS north finder installed near the drill bit, with higher precision!
2. The World's Most Accurate MEMS North Seeker
3. Do You Know about this World's Smallest and Most Accurate MEMS North Finder?
4. Why is Your mining and drilling work inefficient?
5. Efficient Drilling Starts with Choosing a MEMS North Finder

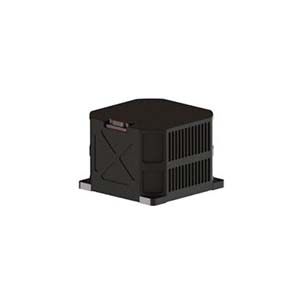

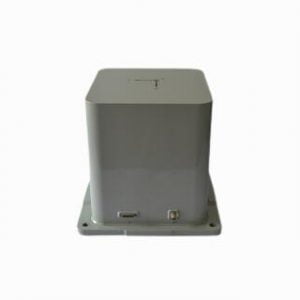

High Performance Dynamic Fog North Seeker

High-performance Dynamic FOG North Seeker

ER-FNS-01D
1.Internal shock absorber, can adapt to large impact and vibration;
2.30s fast alignment, azimuth accuracy 1°; 90s accurate alignment, azimuth accuracy 0.5°;
3.Dynamic north finding, accurate north finding and attitude following in the case of vibration;

More Details

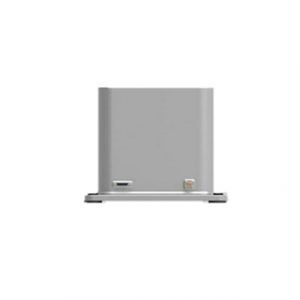

High Precision FOG North Seeker

High Precision FOG North Seeker

ER-FNS-02 (0.02°-0.1°):
1. High precision initial alignment & direction control solution;
2. FOG and quartz accelerometer as core sensors;
3. High stability and reliability.

More Details
Ultra Size Oem Stable Control Mems Imu

Mini MEMS North Seeker for Heading Machine

ER-MNS-04C
1.Adopting the latest MEMS gyro technology, it subverts the size of traditional gyro tools and is extremely small.
2.Size: 27×26×34 Weight: 40g (inner body).
3.Mainly used in mining, tunnel construction and underground space construction.

More Details

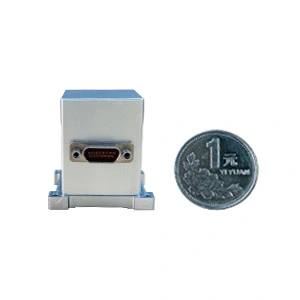

North Seeking Mems Imu

Dynamic MEMS north Seeker for Heading Machine

ER-MNS-05A
1.30 seconds static alignment (1°), dynamic tracking and holding;
2.Alignment accuracy 0.5°, tracking and holding accuracy: 0.5°/20 minutes;
3.Modular design: standard internal platform structure, OEM modular design, strong applicability;
4.Military-grade stability: shock resistance, vibration resistance, strong adaptability designed for harsh working conditions such as mining and tunnels.

More Details
High Performance Navigation Mems Imu.jpg

Ultra-high Precision MEMS North Seeker for Heading Machine

ER-MNS-05C
1.Adopting the latest MEMS gyro technology, it subverts the size of traditional gyro tools and makes them extremely small;
2.Size: 43.2×43.2×35.5 mm Weight: 100 grams (inner table);
3.Alignment/North-seeking accuracy 0.25°;
4.Used in scenarios with high-precision north-seeking and strict volume requirements.

More Details

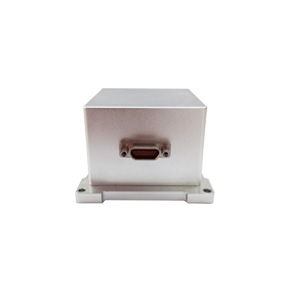

High Accuracy North Seeking Mems Imu

Low Cost MEMS North Seeker for Heading Machine

ER-MNS-06A
1.Adopt the latest MEMS gyro technology, compact size;
2.Adopt three-axis MEMS gyro, three-axis MEMS plus strapdown inertial measurement technology;
3.All-solid-state design, excellent anti-shock and anti-vibration ability, and resistant to harsh environment;
4.With self-seeking north function, not affected by magnetic field;

More Details

MEMS Gyro Directional Module for MEMS Directional Drilling/Drilling Directional Instrument

ER-MNS-09(0.25°-1°):
1.Adopt the latest MEMS gyro technology, cylindrical design, its diameter is reduced to 30mm, length is 120mm, can be easily embedded in the narrow space at the front of the drilling equipment (such as the probe);
2.Adopt the latest three-axis MEMS gyro, three-axis MEMS plus meter strapdown inertial measurement technology;
3.Full solid-state design, built-in inner platform, excellent impact and vibration resistance, and resistant to harsh environments.

.

More Details

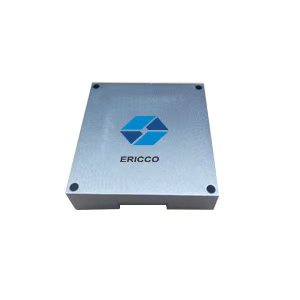

High Performance Navigation 2 Axis Mems Gyro

North Seeker for Hydraulic Supports in Underground Coal Mines

ER-MNS-10A
1.Adopting the latest MEMS gyro technology, it is the thinnest and lightest north seeker, with a thickness of only 14mm and a weight of 40g;
2.Using the latest three-axis MEMS gyro, three-axis MEMS plus strapdown inertial measurement technology;
3.It has the function of self-seeking north and is not affected by magnetic fields;

More Details
