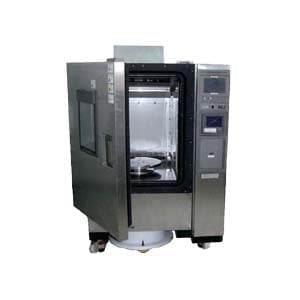

Single Axis Temperature Control Turntable

ER-TCT-01 Features:
1. Provide high and low temperature environment testing;
2. Positioning accuracy: ±3";
3. The maximum installation diameter can reach 1000mm.

Share to:

Introduction

Single Axis Temperature Control Turntable

Introduction

ER-TCT-01 Single-axis temperature control turntable is designed to provide high and low temperature environment testing and single-axis calibration for inertial navigation system and other inertial devices (tested parts). It has two types of horizontal and vertical. The turntable is directly driven by DC torque motor and powered by PWM driver. The table surface is installed inside the temperature box, the maximum installation diameter can reach 1000mm; The temperature box can be customized according to user requirements.

Single-axis temperature control turntable can rotate continuously, and can provide single-axis position, speed, swing and other motion modes for the measured parts; Waterproof and moisture-proof aviation connectors are provided on the turntable for signal transmission of the tested part. The electrical box provides standard RS232/422 serial ports, Ethernet ports and other interfaces, and can be extended optical fiber ports and other interfaces. For the convenience of users, the upper computer software supporting the turntable can integrate the temperature control of the temperature box.

Main technical parameters

Technical index		Standard type
Dimensions in the oven (W x D x H)		600mmx600mmx700mm, can be customized;
Mesa diameter		φ450mm, can be customized
Maximum load weight		60kg, can be customized
Maximum load size		φ350mmx450mm, can be customized
Conductive slip ring		The standard configuration is 60 ring, and it can be customized.
Angle range		Continuous infinity
Motion pattern		Position, speed, swing
Position accuracy
Positioning accuracy		±3"
Control resolution		0.0001°
Repeatability		1"
Rate accuracy
Rate range		1200°/s
Speed accuracy and stability	0~1°/s	2x10^-3(1°average)
	1~10°/s	2x10^-4(10°average)
	10~360°/s	2x10^-5(360°average)
Rate resolution		0.001°/s
Dynamic performance
Maximum angle acceleration		500°/s²
Maximum swing frequency		10Hz
Mechanical accuracy
Rotation accuracy		±1.5”
Mesa material		Super duralumin/stainless steel
Mesa leakage		2Gs
Table runout		0.02mm
Electrical interface
External electrical interface		RS232/RS422
User channel interface		Navigation slot (standard with 2 JY27466 series 32 socket )
Overall dimensions of the platform body
Structural form		Vertical or horizontal table structure
Table height off the ground		Vertical table structure :770-780mm
Base diameter		φ440mm
Temperature control box
Conventional index		Temperature uniformity: ≤2℃ Temperature deviation: ≤±2℃ Temperature fluctuation: ≤±0.5℃ Rising and cooling rate: ≥3℃/s(average throughout)
Other options
Table or product installation tooling can be customized.
Increase position accuracy, speed and acceleration to increase cost; Reduced position accuracy, speed and acceleration to reduce cost
You can customize conductive slip rings, expandable network ports, and optical fiber ports.
Temperature indicators can be customized, and can also provide turntable and temperature control software integration.
