    Introduction

    ER-FNS-01 High Performance Dynamic FOG North Seeker (0.02°-0.5°)

    Introduction

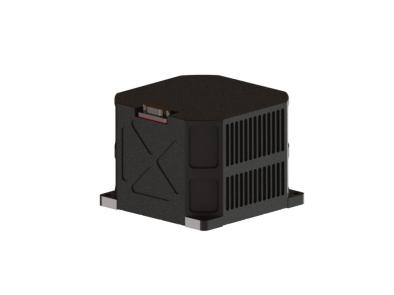

    The ER-FNS-01 high-performance dynamic fiber optic gyro north finder uses a closed-loop fiber optic gyro as its core component. It is mainly composed of an inertial measurement unit (IMU), a digital signal processing unit, and the mechanisms of various mechanical components. It can accurately provide the true north azimuth for the carrier in a vibrating environment and provide accurate attitude tracking functions.

    Feature
    1. With internal shock absorbers, it can adapt to large shocks and vibrations;
    2. Quick alignment in 30 seconds, precise alignment in 90 seconds;
    3. Dynamic north search, which can accurately search for north and follow the attitude in the presence of vibration;
    4. Not affected by magnetic fields;
    5. Full temperature compensation of 5 ~ 55°C, adapting to extreme environments.

    Application
    Mining
    Advanced mining/drilling equipment pointing, steering and guidance
    Oil exploration
    Initial alignment/UAV launch systems

    Specifications

    Parameter ER-FNS-01A ER-FNS-01B ER-FNS-01C ER-FNS-01D
    North seeking accuracy 0.02°secψ 0.06°secψ 0.1°secψ 0.5°secψ
    North-seeking time 5min 5min 3min 3min
    Pitch and roll accuracy 0.02° 0.06° 0.1° 0.5°
    Latitude -70°~+70°
    Pitch and roll measurement range -65°~+65°
    Heading measurement range 0°~360°
    Power supply and environment
    Power consumption ≤50W ≤50W ≤50W ≤10W
    Vibration 20Hz~2000Hz, 6.06g
    Shock 8ms~11ms, 30g
    Communication interface RS422
    Power supply 9~36V
    Operating temperature 5 ~ 55°C
    Physical characteristics
    Size(mm) 248×248×180 248×248×180 200×200×180 100×100×75
    Weight(Kg) 10Kg 10Kg 5Kg 2Kg

    Application Techniques

    1.Applicable to coal mines, tunnels, and exploration! North seeker's strength revealed

    2.How important is the North Seeker in the field of oil、mining and drilling?

    3.OEM customization, easy integration! The North Seeker helps operations in multiple fields to be more accurate and efficient!

    4.Efficient mining, north seeker assists mining drilling operations

    5.Accurate orientation, easy to deal with! North seeker helps work more efficiently

    6.Not restricted by the environment, MEMS north finders help various fields achieve high-precision orientation
