MEMS North Seeker for Hydraulic Supports in Underground Coal Mines

ER-MNS-10AD MEMS North Seeker for Hydraulic Supports in Underground Coal Mines

Introduction

ER-MNS-10AD MEMS North Seeker is a special north seeker for hydraulic supports in coal mines. It adopts the latest MEMS gyro technology, with a height of only 14mm and a total product weight of 40g. It has the world's thinnest and lightest disruptive design, breaking through the volume and weight limitations of traditional equipment. The flat structure can be easily applied to various occasions with strict requirements on height and weight.

Using the latest three-axis MEMS gyro and three-axis MEMS accelerometer strapdown inertial measurement technology, the angular velocity and acceleration are solved to achieve fast and stable measurement of attitude control and true north reference.

It has excellent temperature adaptability and supports compensation in a wide temperature range of 5°C to 55°C. Stable output in different working environments..

Features

1. Adopting the latest MEMS gyro technology, it is the thinnest and lightest north seeker, with a thickness of only 14mm and a weight of 40g, suitable for installation in narrow spaces;
2. Adopting the latest three-axis MEMS gyro and three-axis MEMS accelerometerstrapdown inertial measurement technology;
3. With self-seeking function;
4. Not affected by magnetic field;
5. Temperature compensation from 5°C to 55°C;
6. High quality and low power consumption;

Applications
Hydraulic support in coal mines
Precision platform attitude measurement and control
Static initial alignment and direction control of drones, vehicles, etc.
Directional pointing and tracking in satellite antennas and target tracking systems
North seeking in geodetic/land mobile mapping systems
Pointing, steering and guiding in advanced mining/drilling equipment

Specifications

Model No.	ER-MNS-10AD
Heading accuracy (1σ,°secψ)	1
Attitude accuracy(1σ,°)	≤0.3
Heading accuracy retaining time	20min
Attitude accuracy retaining time	20min
Heading measurement range(°)	0~360
Inclination angle measurement range(°)	-85~85
North seeking time	180s
North seeking method	stationary
Update Rate (Hz)	100
Use the environment and electrical interfaces
Operating temperature (℃)	5~+55
Storage temperature (℃)	0~+65
Power supply (V)	6~12V DC
Power (W)	2
Communication interface	RS-422
Physical characteristics
Size (mm×mm×mm)	47×44×14
Weight (g)	40

Wiring Definition

The product docking connector is Samtec CLM-112-02-L-D

Connect Type	pin	definition
mw-12-03-g-d-130-112	10、11、12	+6~12V
	13、14、15	GND
	23	Tx+
	24	Tx-
	21	Rx+
	22	Rx-



Dimension

Data protocols

Upper computer receiving protocol

The data update rate is 100Hz, the baud rate is 230400bps, and each frame contains 61 bytes of data, each byte contains 1 start bit (0), 8 data bits, 1 stop bit (1), and no parity. The specific data format is shown in the table below:

Table 1 Receive data frame format

Bytes (60 bytes total)	Data content	supplementary note
1~4	header	EB8055AA
5~8	X Gyro Data	Low then high, dimensionless digital FLOAT
9~12	Y gyro data	Low then high, dimensionless digital FLOAT
13~16	Z Gyro Data	Low then high, dimensionless digital FLOAT
17~20	X ACCL data	Low then high, dimensionless digital FLOAT
21~24	Y ACCL data	Low then high, dimensionless digital FLOAT
25~28	Z ACCL data	Low then high, dimensionless digital FLOAT
29~32	Lon	Low then high, 0.000001°.
33~36	Lat	Low then high, 0.000001°.
37~40	Alt	First low, then high, 0.000001m
41~44	count	Low then high, 10ms
45~46	pit	Low then high, 0.01°
47~48	rol	Low then high, 0.01°
49~50	yaw	Low then high, 0.01°
51~52	North speed	First low then high, 0.01m/s
53~54	up speed	First low then high, 0.01m/s
55~56	east speed	First low then high, 0.01m/s
57	state	0xA1 alignment, 0xB1 hold
58	end of frame	0x00
59	end of frame	0xFF
60	end of frame	0x34
61	matching test	EB 80 and the sum of all bytes other than itself



Host computer sending protocol

Total number of bytes sent down in a single transmission: 21 bytes, baud rate 230400bps, no parity, each byte includes: start bit (0), data bit (8 bits), stop bit (1).

1. priming

byte symbol	define	note
1	0xEB
2	0x80
3	0x00
4	0xCC
5-8	0x00
9-12	0x00
13-16	0x00
17-21	0x00

2. Send warp and woof height

byte symbol	define	note
1	0xEB
2	0x80
3	0x00
4	0xAA
5-8	lon
9-12	lat
13-16	alt
17	0xAA
18	0xBB
19	0xCC
20	0xDD
21	5~20 heterodyne calibration

Determine the definition of the data sent based on byte 4:

1. if control_flag==0xCC: restart work
2. if control_flag==0xAA: send latitude/longitude altitude

Send order: 5-8 bytes: latitude (*1e6 in °)

9-12 bytes: longitude (*1e6 in °)

13-16 bytes: height (*1 in m)

For example, the C code that sends the latitude/longitude instruction (the rest of the bytes are configured arbitrarily), Latitude is "latitude * 1e6", longitude is similar, and altitude scale is 1.

bytSend[0] = 0xeb;

bytSend[1] = 0x80;

bytSend[2] = 0x00;

bytSend[3] = 0xaa;

bytSend[4] = (Latitude>>24) & 0xff;

bytSend[5] = (Latitude>>16) & 0xff;

bytSend[6] = (Latitude>>8) & 0xff;

bytSend[7] = (Latitude) & 0xff.

bytSend[8] = (Longitude>>24) & 0xff;

bytSend[9] = (Longitude>>16) & 0xff;

bytSend[10] = (Longitude>>8) & 0xff;

bytSend[11] = (Longitude) & 0xff.

bytSend[12] = (Height>>24) & 0xff;

bytSend[13] = (Height>>16) & 0xff;

bytSend[14] = (Height>>8) & 0xff;

bytSend[15] = (Height) & 0xff;

bytSend[16] = 0xaa;

bytSend[17] = 0xbb;

bytSend[18] = 0xcc;

bytSend[19] = 0xdd;

bytSend[20] = b[4]^b[5]^... .b[19];

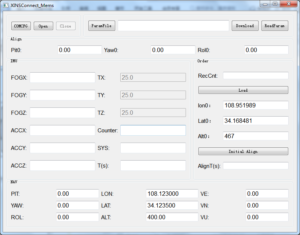

Introduction to the software

Click the COMCFG button to set the serial port, baud rate and frequency. The baud rate is 230400 and the frequency CAL is 100HZ.

Click Open to start the test.

Click Initial Align to start the north search, the search time is 300s.The result is displayed at PIT;YAW;ROL.

If you want to change the latitude and longitude, please change them at Lon0 and Lat0, then click Load, and then click Initial Align to re-navigate.

---
