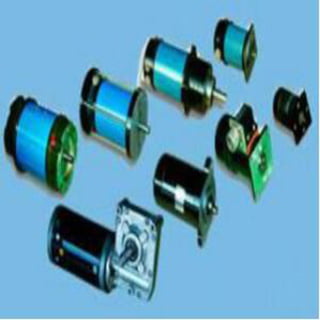

ER-Series Brushless Electric Motor

Features:
1. High quality and high security of Brushless motor;
2. Various sizes and special functions are available.

Send InquiryChat Now
ER-Series Brushless Electric Motor



                                                                        ER-Series Brushless Electric Motor





The series brushless motor, brushless torque motor adopts rare-earth cobalt permanent magnet excitation system enclosed self-cooling type, widely used in automatic control and so on used as actuators in the system, also can be used as a driving element: this series motor has small volume, light weight, high power density per unit volume, high can index etc.



Working condition:

1.Environment temperature: -40℃~+70℃

2.Air relative humidity: ≤95%(25℃)

3.The salt spray, mold

4.Satisfy the requirement of GJB1863-94



Brushless motor

ER30~ER60ZWX Technical data

Part No.

Voltage V

Torque N.m

Rotary speed r/min

Power(W)

Current ≤A

Boundary dimension

Remark

ER30ZWX02

28

0.07

5700

42

2.2

Ø30X55


ER40ZWX17A

36

0.19

20500

400

15

Ø40X80


ER40ZWX120

24

0.23

5000

120

7

Ø40X104


ER45ZWX250

24

0.478

5000

250

14

Ø45X123


ER50ZWX300

24

0.573

5000

300

16

Ø50X118


ER60ZWX52

24

0.77

5000

400

23

Ø60X133



ER30~ER60ZWX Outline overall and installing dimensions

Part No.

L1

L2

L3

D1

D2

D3

ER30ZWX02

55

-

1.2

Ø30

Ø150 -0.05

Ø4

ER40ZWX17A

80

14.5

-

Ø40

Ø16

Ø5

ER40ZWX120

104

20±0.3

2.50 -0.1

Ø40h100 -0.1

Ø22h7

Ø6g6

ER45ZWX250

123

32.5+0.4 -0.1

2.50 -0.1

Ø45

Ø25h7

Ø8g6

ER50ZWX300

118

26±0.2

2.50 -0.1

Ø50

Ø25h7

Ø8g6

ER60ZWX52

132.5

32

4

Ø60

Ø35h7

Ø12g6


45ZWX800 Technical data, appearance and installation dimensions

Part No.

Voltage V

Torque N.m

Rotary speed r/min

Power(W)

Current ≤A

Boundary dimension

Remark

45ZWX800

56

0.6

13000

820

17

Ø45X80

magnetism encoder


80ZW06 Balanced car dedicated motor technical data, appearance and installation dimensions

Voltage V

Torque N.m

Rotary speed r/min

Power(W)

Current ≤A

Boundary dimension

Remark

72

0.856

6700

600

12

Ø80x124



ER84ZWX01Y Technical data, appearance and installation dimensions

Voltage V

Torque N.m

Rotary speed r/min

Power(W)

Current ≤A

Boundary dimension

Remark

110

2x0.6

15000

1900

25

Ø84x73

magnetism encoder





ER230LW Technical data

Part No.

Voltage V

Torque N.m

Rotary speed r/min

Power(W)

Current ≤A

Boundary dimension

Remark

ER230LW01

90

40

85

360

8

Ø219x81

split type

ER230LW02

90

20

85

180

7

Ø219x63

split type




ER230LW Outline overall and installing dimensions

Part No.

L1

L2

L3

L4

D1

ER230LW01

81±0.15

-

47

48±0.2

Ø170H7

ER230LW02

63±0.15

39.5±0.15

29

30±0.2

Ø170H9



Permanent-magnet synchronous motor

This series of cobalt permanent magnet synchronous motor using rare earth permanent magnet excitation, the sensor for the rotating transformer is closed self-cooled or split type and widely used in automatic control and so on used as actuators in the system, also can be used as a driving element: this series motor has small volume, light weight, a high power density, volume can index is high.



Working condition:

1. Environment temperature: -40℃~+70℃

2. Air relative humidity: ≤95%(25℃)

3. The salt spray, mold

4. Satisfy the requirement of GJB789A



4DZYC-1 Technical data, appearance and installation dimensions

Voltage V

Torque N.m

 Revolving speed r/min

Power(W)

Current ≤A

Boundary dimension

Remark

460

41

2600

12000

30

Ø160x242

resolver




ER40~ER60TY technical data

Part No.

Voltage V

Torque N.m

revolving speed r/min

power(W)

electric current ≤A

boundary dimension

Remark

ER40TY120

24

0.23

5000

120

7

Ø40x104

resolver

ER45TY250

24

0.478

5000

250

14

Ø45x123

resolver

ER50TY300

24

0.573

5000

300

16

Ø50x118

resolver

ER60TY51

24

0.77

5000

400

23

Ø60x129

resolver


ER40~ER60TY outline overall and installing dimensions

Part No.

L1

L2

L3

D1

D2

D3

ER40TY120

104

20±0.3

2.5

Ø40h10

Ø22h7

Ø6g6

ER45TY250

123

32.5

2.5

Ø45

Ø25h7

Ø8g6

ER50TY300

118

26±0.2

2.5

Ø50

Ø25h7

Ø8g6

ER60TY51

129

32

4

Ø60

Ø36h7

Ø12g6


If interested,pls contact us info@ericcointernational.com


ERICCO is expert in high quality brushless electric machine manufacturing and selling, who is one of the best manufacturers and suppliers of brushless electric machine with high precision. We have a professional factory at your service.
