    ER-MG-067 High Performance MEMS Gyro

    Introduction

    ER-MG-067, a high precision Tactical Grade MEMS Gyro with 0.3 deg/hr Bias of instability and 0.125°/ √h of Angular random walk, is a single-axis MEMS angular rate sensor (gyroscope) capable of measuring angular velocity up to a maximum of ±400°/s with digital output compliant to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.

    ER-MG-067 is intended for industrial, instrumentation, stabilization, and other high performance applications.

    An advanced, differential sensor design rejects the influence of linear acceleration, enabling ER-MG-067 to operate in exceedingly harsh environments where shock and vibration are present.

    The ER-MG-067 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−45°C to +85°C).

    Features

    Proven and robust silicon MEMS gyro

    Up to ±400°/s measurement range

    0.3°/hr bias instability

    0.125°/√hr angular random walk

    Digital output (SPI slave)

    5V operation (4.75~5.25V supply)

    Low power consumption (35 mA)

    High shock and vibration rejection

    Hermetically sealed ceramic LCC surface mount package (11x11x2mm)

    Integrated temperature sensor

    RoHS compliant

    Applications

    Azimuth, attitude, position measuring and keeping In GNSS-assisted INS

    Heading , pitch ,roll measuring In AHRS for UAV

    Motion survey and keeping in MRU

    Attitude & azimuth keeping, positioning in IMU

    Guidance, navigation, control in tactical MEMS weapon system

    Stabilizing & Pointing in satellite antenna,target tracking system

    Robotic Control & Orientation in Autonomous machines, Unmanned vehicles

    Specifications

    Parameters

    ER-MG-067

    Unit

    Range

    400

    deg/s

    Resolution

    24

    bits

    Data rate

    12K

    Hz

    Group delay

    <1.5

    ms

    Bandwidth (-3dB)

    250

    Hz

    Scale factor at 25°C

    16000

    lsb/deg/s

    Scale factor repeatability (1σ)

    <50

    ppm

    Scale factor VS temperature (1σ)

    300

    ppm

    Scale factor non-linearity (1σ)

    <300

    ppm

    Bias instability

    <0.3

    deg/hr

    Bias stability (1σ 10s)

    <3

    deg/hr

    Bias stability (1σ 1s)

    <9

    deg/hr

    Bias repeatability (1σ)

    <1

    deg/hr

    Angular random walk

    <0.125

    °/ √h

    Bias error over temperature (1σ)

    50

    deg/Hr

    Bias temperature variations, calibrated (1σ)

    <10

    deg/Hr

    Noise peak to peak

    ±0.20

    deg/s

    G-sensitivity

    <1

    °/hr/g

    Vibration rectification error

    <1

    °/hr/g (rms)

    Startup time

    1

    s

    Sensor resonant frequency

    11K~13K

    Environment, power and physical

    Shock (operating)

    500g, 1ms, half sine wave

    Shock (survival)

    10000g, 1.0ms, half sine wave

    Vibration (operating)

    12grms, 20Hz to 2KHz random vibration

    Operating temperature

    -45°C~85°C

    Max storage (survival) temperature

    -55°C~125°C

    Supply voltage

    5±0.25V

    Current consumption

    40mA

    Application Techniques

    More Products

    High Performance North Seeking MEMS Gyroscope
    High Performance North Seeking MEMS Gyroscope
    High Precision Navigation MEMS Gyroscope
    High Precision Navigation MEMS Gyroscope
    Cost-Efficient Triaxial MEMS North Seeker
    Cost-Efficient Triaxial MEMS North Seeker
    North-Seeking MEMS IMU
    North-Seeking MEMS IMU

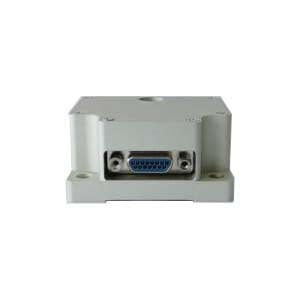

    High Precision Stable-control MEMS Gyro
    High Precision Stable-control MEMS IMU

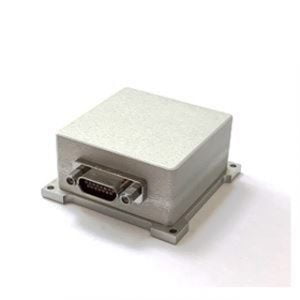

    Integrated Navigation System
