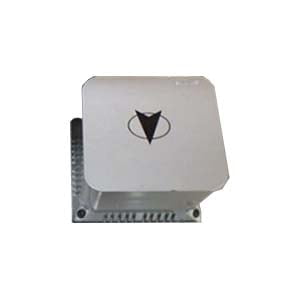

    ER-FINS-98 High Performance FOG INS (Replace PHINS )

    Introduction

    ER-FINS-98 FOG inertial navigation system (Substitute of PHINS) uses a three-axis fiber optic gyroscope to sense angular movement and output a digital signal proportional to the angular rate of carrier movement. The three quadrature collocations of the quartz accelerometer are used to sense the linear acceleration of the carrier and output a proportional current signal, which is converted into a frequency signal by the I-F conversion circuit, and finally input to the navigation computer. The computer completes the data reception of the gyroscope, accelerometer and external GPS, system compensation error calculation, navigation solution, and sends loop additional real-time speed, position, attitude and navigation information to the outside through the monitoring port.

    The initial alignment of ER-FINS-98 is divided into two modes: static alignment and double position alignment. The position accuracy of the two position alignment is higher than that of the static alignment.

    ER-FINS-98 has high precision and best stability and showed excellent performance in comparison test with PHINS related INS products.

    Specifications

    Pure Inertial Mode
    Azimuth accuracy ≤ 0.1°secψ (1σ)
    Attitude accuracy ≤ 0.02° (1σ)
    Azimuth holding accuracy 0.05° /h
    Attitude holding accuracy 0.03° /h
    Positioning accuracy (50%CEP) ≤ 2nm/h (10min Static alignment )
    Horizontal velocity   precision (RMS) ≤ 2m/s (10min Static alignment )
    Positioning accuracy (50%CEP) ≤ 1nm/h (Two position alignment,

    Alignment time is less than 30min)

    Horizontal velocity precision (RMS) ≤ 1m/s (Two position alignment,

    Alignment time is less than 30min)

    GNSS Assisted Navigation Mode (External receiver)
    Azimuth accuracy ≤ 0.1°secψ (1σ)
    Horizontal attitude accuracy ≤ 0.02° (1σ)
    Azimuth holding accuracy ≤0.05°
    Horizontal attitude holding accuracy ≤ 0.01° (1σ)
    Positioning accuracy ≤ 5m (1σ)
    Speed accuracy ≤ 0.1m/s (1σ)
    Power and environment
    Data measurement frequency Maximum 100Hz
    Power Supply 23~31V DC Power Supply,

    Nominal Supply Voltage 27V

    Power Normal temperature steady-state power

    consumption is less than 17W,

    High and low temperature steady-state

    power consumption is less than 20W,

    Start transient power consumption

    is less than 50W

    Working Temp -40° C~+60°C
    Storage Temp -45° C~+80° C
    Installment Dimension 180mm×180mm×160mm
    Quality ﹤6kg
    Fiber Optic Gyroscope
    Time to Prepare ≤ 15s
    Bias Stability (100s) ≤ 0.02 °/h (1σ)
    Bias repeatability ≤ 0.02 °/h (1σ)
    Random Walk Coefficient ≤ 0.005°/ √ Hz
    Scale Factor Nonlinearity ≤ 50ppm (1σ)
    Scale Factor Repeatability ≤ 50ppm (1σ)
    Gyro Measurement Range ≥ ±300° /s
    Quartz Accelerometer
    Measurement Range 1-20g~+20g
    The Threshold Value ≤ 5×10-6g
    Scale Factor Repeatability ≤ 3.5×10-5 (1σ)
    Scale Factor Temperature Coefficient ≤ 6×10-5/° C (-40° C~+60° C)
    The Second Order Nonlinear Coefficient ≤ 3×10-5g/g2
    Bias ≤ 6×10-3g
    Bias Repeatability ≤ 2.5×10-5g (1σ)
    Bias Temp Coefficient ≤ 2.5×10-5g/° C (-40° C ~ +60° C)
    Band width ≥ 800Hz
