Navigation and Positioning Receiver

ER-GNSS-R01 Features:
1. Can encapsulate a variety of OEM boards;
2. Has two serial ports which can communicate with external equipment, an antenna port, power input;
3. Suitable for low-cost, low-power field BDS/GPS positioning system, multi-application RTK, timing.

Share to:

Introduction

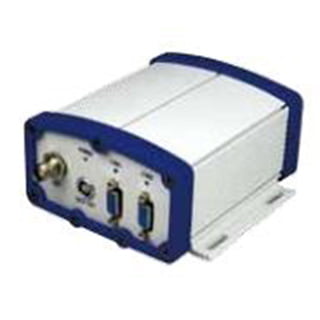

ER-GNSS-R01 Navigation and Positioning Receiver

Introduction

ER-GNSS-R01 Navigation and Positioning Receiver receiver is a very cost-effective receiver with Beidou function, which can encapsulate a variety of OEM boards. The product has two serial ports which can communicate with external equipment. Receiver has an antenna port, power input and so on. It is suitable for low-cost, low-power field BDS/GPS positioning system, multi- application RTK, timing etc.

Features

High precision positioning information can be output

Support serial port or network port communication Optional

Serial port format LEMO/DB9 optional

Supports a wide range of voltage inputs

Small size, light weight, easy to install and carry

Specifications

Performance index
Dimension(excluding antenna sockets)	141×138.5×70mm
Weight	<500g
Power consumption	7W(typical value)
Horizontal positioning accuracy (RMS)	<3m(according to internal package board)
RTK accuracy (horizontal)	Level:1cm+1ppm; Vertical: 2cm+1ppm (built-in high precision board)
Data update rate	>1HZ(according to internal package board)
Power input	9V~32VDC(12V DC recommended)
Operating temperature	-40°C~65°C
Storage temperature	-45°C~85°C
Humidity	5% to 95% Relative humidity, no condensation
Interface type	2 antenna interfaces (TNC female head)
	1 Power interface (LEMO)
	2 communication interfaces (LEMO/DB9 optional)
	1 Network port (RJ45 optional)
