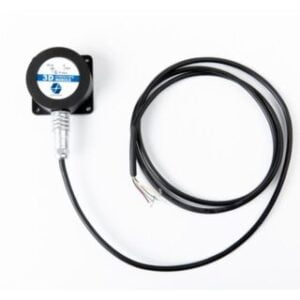

High Performance Voltage Output Type Dual Axis Tilt Sensor

High Performance Voltage Output Type Dual Axis Tilt Sensor

ER-TS-5270VO Features:
1. Two axis tilt monitoring;
2. Stable accuracy of 0.05°;
3. Dynamic measurement accuracy of 0.3°.

High Performance Voltage Output Type Dual Axis Tilt Sensor

High Performance Voltage Output Type Dual Axis Tilt Sensor

Get Price Now

    Share to:


    High Performance Voltage Output Type Dual Axis Tilt Sensor

    ER-TS-5270VO voltage type two-axis inclinometer is a new generation of high-performance, small-sized, high-precision inclination sensor that can maintain high precision in complex motions, with a dynamic measurement accuracy of 0.3°, a stable accuracy of 0.05°, and a temperature drift of 0.01°/℃. The output mode has 0~5V, 0~10V standard interface can be selected, easy to integrate into the user control system.
    The product has a built-in MCU control system, vertical gyroscope and accelerometer, and integrated attitude solver. Using the optimal digital filtering algorithm, noise reduction, with the N-order Kalman filtering algorithm, through nonlinear compensation, quadrature compensation, temperature drift and other compensation to eliminate error sources and improve measurement accuracy. It can accurately output objects in strong vibration and motion environment posture angle.

    Two axis tilt monitoring
    Dynamic measurement accuracy of 0.3°
    Stable accuracy of 0.05°,
    Vertical gyroscope/N-order Kalman filter
    Input voltage DC 9~36V
    Wide temperature working -40~+85℃
    Range 0~±90° (optional)
    High nonlinear compensation
    Orthogonal compensation
    Temperature compensation
    Baud rate 2400~115200 (adjustable)
    Protection level IP67
    Output 0~5V, 0~10V (optional)
    Small volume (60*59*29mm) (customizable)

    Balance car
    Agricultural machinery, rotary drilling rig
    AGV car
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams


    Parameter Condition ER-TS-5270VO-10 ER-TS-5270VO-30 ER-TS-5270VO-60 ER-TS-5270VOI-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measurement of shaft / X, Y Axis X, Y Axis X, Y Axis X, Y Axis /
    Zero temperature drift -40~85° ±0.01 ±0.01 ±0.01 ±0.01 °/℃
    Sensitivity temperature coefficient -40~85° ≤200 ≤200 ≤200 ≤200 ppm/℃
    Zero drift 0°output 2.5 2.5 2.5 2.5 V
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5Hz 0.05 0.05 0.05 0.05 °
    Accuracy -40~85℃ 0.3 0.3 0.3 0.3 °
    Long-term stability -40~85℃ <0.35 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Output signal  0~5V
    Average working time ≥55,000 hours/time
    Impact resistant 25000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Water proof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.3mm²
    Weight 180g (excluding boxes)
