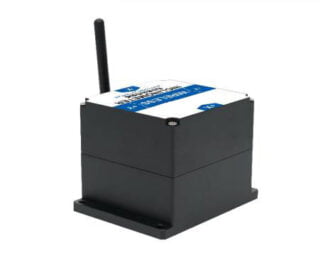

High Precision Wireless Transmission Tilt Sensor

High Precision Wireless Transmission Tilt Sensor

ER-TS-12200-Modbus Features:
1. Dual axis monitoring (single axis optional);
2. Full range accuracy 0.001°, resolution 0.0005°;
3. Volume (94*74*64mm) (customizable).

.

High Precision Wireless Transmission Tilt Sensor

High Precision Wireless Transmission Tilt Sensor

Get Price Now

    High Precision Wireless Transmission Tilt Sensor

    Introduction

    ER-TS-12200-Modbus High Precision Wireless Transmission Tilt Sensor is a wireless inclination sensor with ultra-low power consumption, small size and high performance, which is aimed at the industrial application of users without power supply or real-time dynamic measurement of object attitude angle. Powered by lithium battery, based on Internet of things technology Bluetooth and ZigBee (optional) wireless transmission technology, all internal circuits have been optimized and designed, and various measures such as industrial MCU, three proof PCB board, imported cable, wide temperature metal shell are adopted to improve the industrial level of the product. With good long-term stability and small zero drift, it can automatically enter the low-power sleep mode, so as to get rid of the dependence on the use environment.

    The product has compact structure, precise design, re compensation for temperature and linearity, and integrated comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc. it is simple and convenient to use. The wireless digital signal transmission method eliminates the cumbersome wiring and noise interference caused by long cable transmission; The industrial design has extremely high measurement accuracy and anti-interference ability. The wireless sensor nodes can form a huge wireless network, support thousands of measuring points to monitor the inclination at the same time, and support professional computer software. Without field survey, it can measure and record the state of the measured object in real time; The safety monitoring system is suitable for remote real-time monitoring and analysis of industrial sites, dilapidated houses, ancient buildings, civil engineering, tilt deformation of various towers and other needs.

    Features

    Dual axis monitoring (single axis optional)

    Range: ±30°

    Accuracy: 0.001°, resolution: 0.0005°

    Volume (94*74*64mm) (customizable)

    Ultra low power consumption

    Powered by built-in rechargeable lithium battery

    Wide temperature operation -40~+85℃

    IP67 protection grade

    Applications

    Bridge construction

    Pan tilt leveling

    Ship navigation attitude measurement

    High Railway Foundation Tunnel Monitoring

    Satellite solar antenna positioning

    Medical equipment

    Angle control of various construction machinery

    Specifications

    Parameter Condition ER-TS-12200-Modbus Unit
    Measuring range ±30 °
    Measuring axis X, Y
    Zero temperature drift -40~85° ±0.0005 °/ ℃
    Sensitivity temperature coefficient -40~85° ≤150 ppm/℃
    Frequency response DC response 100 Hz
    Resolution 0.0005 °
    Accuracy -40~85 ℃ 0.001 °
    Long term stability -40~85 ℃ <0.0016 °
    Power on start time 0.2 s
    Response time 0.05 s
    Wireless frequency 2460mhz (default), 2405~2480 adjustable
    Transmission distance 1.6km
    Built in battery capacity 6000mAh
    Average working time ≥ 55000 hours / time
    Impact resistance 20000g, 0.5ms, 3 times / shaft
    Anti vibration 10grms, 10~1000Hz
    Insulation resistance ≥100m Ω
    Waterproof grade IP67
    Weight 475g (excluding packing box)

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account , we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules : in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in High Precision Wireless Transmission Tilt Sensor, pls contact us: info@ericcointernational.com
