Dynamically Tuned Inertial Navigation System

ER-DINS-1 (0.4~0.5°) Features:
1. Strapdown inertial navigation system determination of aircraft position, heading, altitude;
2. System with emergency rapid alignment, normal alignment, navigation, correction, parameter calibration, testing, parameter binding, non volatile storage.

Dynamically Tuned Inertial Navigation System

Get Price Now

    Dynamically Tuned Inertial Navigation System

    Introduction

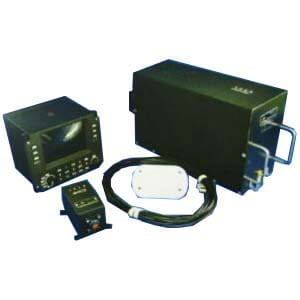

    Dynamically Tuned Inertial Navigation System consists of inertial measurement unit, magnetic heading sensor and control the display, satellite receiving antenna, doppler radar and installation bracket component. The satellite receiving antenna can customized according to the needs for BD2/GPS/GLONASS triple receiving antenna or BD2 anti-interference antenna. Inertial measurement unit can also be a separate form of inertial measurement unit, for all kinds of missile flight control system and guidance system.

    Strapdown inertial navigation system determines aircraft position, heading, altitude, the acceleration. As the navigation of aircraft, it determines flight control, route management and provides location, velocity, attitude, heading information. Dynamically Tuned Inertial Navigation System has emergency rapid alignment, normal alignment, navigation, correction, parameter calibration, testing, parameter binding and non volatile storage.

    Specifications

    Project ER-DINS-1[1] ER-DINS-1A[2] ER-DINS-1N[3]
    Overall Dimensions 1/2ATRStandard Case

    315mm×124mm×194mm

    1/2ATRStandard Case

    315mm×124mm×194mm

    1/2ATRStandard Case

    315mm×124mm×194mm

    Weight ≤12kg ≤22.33kg (Containing Doppler radar) ≤8.5kg
    Power Supply 28V DC Power Consumption≤90W 28V DC Power Consumption≤65W 28V DC Power Consumption≤60W
    Preparation Time (Starting At Normal Temperature) Normal Condition8min

    Emergency Situation2min

    Normal Condition8min

    Emergency Situation3min

    Normal Condition6min

    Emergency Situation3min

    Precision Of Integrated Navigation Position: 30m(CEP)

    Speed: 1m/s(RMS)

    Heading: 0.4°(RMS)

    Attitude: 0.2°(RMS)

    Position: 30m(CEP)

    Speed: 1m/s(RMS)

    Heading: 0.4°(RMS)

    Attitude: 0.2°(RMS)

    Position: 30m(CEP)

    Speed: 0.5m/s(RMS)

    Heading: 0.4°(RMS)

    Attitude: 0.2°(RMS)

    Pure Inertia
    Navigation Accuracy
    Position: 10km/30min(CEP)

    Speed: 6m/s(RMS)

    Heading: 0.4°(RMS)

    Attitude: 0.2°(RMS)

    Position: 10km/20min(CEP)

    Speed: 5m/s(RMS)

    Heading: 0.4°(RMS)

    Attitude: 0.2°(RMS)

    Position: 1.5nm/10min(CEP)

    Speed: 6m/s(RMS)

    Heading: 0.5°(RMS)

    Attitude: 0.2°(RMS)

    Inertial / Doppler Integrated Navigation Accuracy Position: 1%·S,S For The Flying Distance

    Speed: Not Less Than Doppler Radar Accuracy

    Heading: 0.4°(1σ)

    Attitude: 0.2°(1σ)

    Position: 0.8%·S,S For The Flying Distance

    Speed: Not less Than Doppler Radar Accuracy

    Heading: 0.5°(1σ)

    Attitude: 0.2°(1σ)

    Precision Of Satellite Navigation Position: 30m(CEP)

    Speed: 1m/s(RMS)

    Position:30m(CEP)

    Speed: 1m/s(RMS)

    Position:30m(CEP)

    Speed: 0.8m/s(RMS)

    Dynamic Adaptability Angular Velocity≥±100°/S

    Linear Acceleration≥±8g

    Angular Acceleration≥200°/S2

    Angular Velocity≥±100°/S

    Linear Acceleration≥±8g

    Angular Acceleration≥200°/S2

    Angular Velocity≥±100°/S

    Linear Acceleration≥±8g

    Angular Acceleration≥300°/S2

    Working Temperature -40ºC~+70℃ -40ºC~+65℃ -40ºC~+60℃
    Storage Temperature -55ºC~+70℃ -55ºC~+70℃ -55ºC~+70℃
    Vibration 0.0027g2/HZ 0.02g2/HZ 0.02g2/HZ
    Shock 15g 15g 15g

    Note[1]: contains the control display.

    Note[2]: contains Doppler radar. Note

    Note[3]: with moving base alignment and DVS current correction function.
