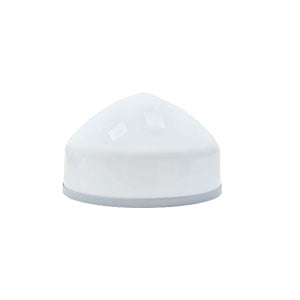

Universal Monitoring All-in-one Machine
ER-GNSS-R05 is a universal GNSS receiver is suitable for geological disaster monitoring and early warning. With built-in autonomous high-precision and low-power positioning module, the host adopts integrated design, easy installation and maintenance, and ultra-low power design, which reduces the requirements for system configuration battery capacity and solar panel power, and reduces site construction and operation costs.
Features
Linux+Qualcomm MDM9628 Cortex-A7 Intelligent System Platform
Support BDS, GPS, GLONASS, Galileo, QZSS
Full frequency coverage and lower power consumption
Built-in high-precision sensors, support threshold trigger function
Complete data chain, support 4G, Lora radio (optional), RS232 and RS485
Support access to -all kinds of general-purpose sensors, and work more flexibly
Support 4G full Netcom, downward compatible with 2, 3G networks
Support cloud platform remote monitoring and operation
Integrated design, low cost, low power consumption, easy to install and maintain
Specifications
| Performance Index | |||
| Hardware platform | Qualcomm MDM9628 Cortex-A7 | ||
| Software Platform | Linux | ||
| GNS Positioning accuracy Acceleration Measurement | BDS | B1I/B2I/B3I/B1C/B2a | |
| GPS | L1/L2/L5 | ||
| GLONASS | L1/L2 | ||
| Galileo | E1/E5a/E5b | ||
| QZSS | L1/L2/L5 | ||
| Supported Data Formats | NMEA-0183 | ||
| Modified volume I/O protocol | RTCM3.X | ||
| Fixed convergence time | ≤10s | ||
| Single-point positioning accuracy (RMS) | Level:1.5m Elevation:2.5m | ||
| Static solution Plane | Horizontal: ±(2.5mm+1ppm) Elevation: ±(5mm+1ppm) | ||
| Measurement range | ±6g | ||
| Measurement Accuracy (RMS) | ±1mg | ||
| Sampling interval | 0s~24h | ||
| Upload interval | 0s~72h | ||
| Network communication | All-netcom | ||
| LTE FDD: B1/B3/B5/B8 | |||
| LTE TDD: B38/B39/B40/B41 | |||
| TD-SCDMA: B34/B39 | |||
| CDMA: BC0 | |||
| WCDMA: B1/B8 | |||
| GSM: 900/1800MHz | |||
| Built-in storage | 32GB, available space 24GB, circular storage, Support 512GB | ||
| SIM | External SIM,default carrier is China Mobile | ||
| Customized working modes | Auto and manual adjustment | ||
| Indicator Lights | PWR power lamp | The power indicator turns on when it is powered on | |
| Power Light | Power Indicator | ||
| RTK mode light | Reference station: Base station starts normally -- steady on | ||
| Mobile station | Fixed solution - steady on Single point/differential/floating point solution-flashing | ||
| SD data indicator | Blinks once every 4K data write when data is stored | ||
| 4G Mobile Network Lamp | Lights up when the mobile network is successfully connected. | ||
| SENSOR Sensor Light | Illuminates when there is a sensor data connection. | ||
| Environmental Characteristics | |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
| Seismic resistance | IEC60068-2-6 |
| Three protection level | IP68 |
| Electrical Characteristics | |
| Power Supply | 9~36V DC |
| Power consumption | 1.8W (Avg) |
| Data port | (RS485 supports standard Modbus protocol) |
| Physical Characteristics | |
| Material | PC+ABS+ Aluminum alloy |
| Size | Φ213×136mm |
| Weight | ≤2.1kg |
| Accessories | |
| MU6 Host | 1 set |
| Data power supply cable | 1 pc |
