    Introduction

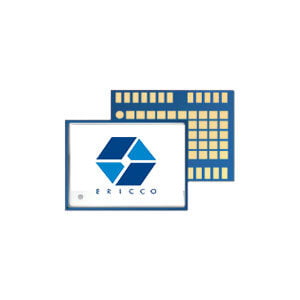

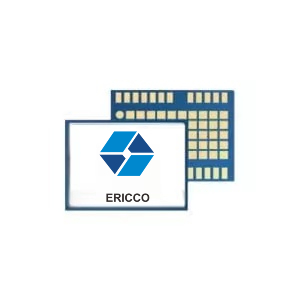

    The Full System Multi-frequency High-precision Positioning Module

    ER-GNSS-M09 is a new generation of BDS/GPS/GLONASS/Galileo/QZSS multi-frequency high-precision GPS-RTK positioning module in the system, based on the star through independent research and development and the core of a new generation of RF GNSS base-band and high-precision algorithm integration - NebulasIV SoC chip design. It can simultaneously track BDS B1I/B2I/B3I/B1C/B2a*, GPS L1C/A/L2P/ L5, GLONASS L1/L2, Galileo E1/E5b/E5a, QZSS L1/L2/L5 and other signal frequency points. For deformation monitoring, high-precision GIS, drones, lawnmowers, precision agriculture, Surveying and mapping and intelligent driving and other high-precision navigation and positioning fields.

    Features

    Integrated GNSS SoC chip based on the latest generation of NebulasIV RF Base-band and high-precision algorithm

    16x12x2.4mm surface mounting

    Size compatible with the car market mainstream GNSS module products

    Supports BDS B1I/B2I/B3I, GPS L1C/A/L2P/L5, GLONASS L1/L2, Galileo E1/E5b/E5a, QZSS L1/L2/L5

    Full system multi-frequency RTK engine and "UGypsophila" full sky RTK technology

    Satellite frequency point independent tracking and 60dB narrow-band anti-jamming technology.

    Specifications

    Performance Index
    Channel 1408 channel, based on NebulasIV chip
    Signal BDS B1I/B2I/B3I
    GPSL1C/A/L2P/L5
    Galileo E1/E5a/E5b
    GLONASS L1/L2
    QZSS L1/L2/L5
    Single point positioning (RMS) Plane:1.5m; elevation:2.5m
    RTK (RMS) Plane:0.8cm+1ppm
    Elevation: 1.5cm+1ppm
    Observation accuracy(RMS)  BDS  GPS GLONASS Galileo
    B1I/L1C/A/E1/G1Pseudo distance 10cm 10cm 10cm 10cm
    B1I/L1C/A/E1/G1 Carrier phase 1mm 1mm 1mm 1mm
    B2I/L5/G2/E5b Pseudo distance 10cm 10cm 10cm 10cm
    B2I/L5/G2/E5b Carrier phase 1mm 1mm 1mm 1mm
    B3I/L2P(Y)/L2C/G2 Pseudo distance 10cm 10cm 10cm 10cm
    B3I/L2P(Y)/L2C/G2 Carrier phase 1mm 1mm 1mm 1mm
    Time to First Fix (TTFF) Cold start<30s
    RTK initialization time <5s (typical value)
    Initialization reliability >99.9%
    Differential data RTCM v3.3/3.2
    Data format NMEA 0183 Unicore
    Positioning data update rate 20Hz
    Time accuracy (RMS) 20ns
    Velocity accuracy (RMS) 0.03m/s
    Physical characteristics
    Size 12.2×16.0×2.4mm
    Encapsulation  24 pin LGA
    Operating temperature -40℃~+85℃
    Storage temperature -55℃~+95℃
    Humidity 95% Non-condensation
