Low Cost Fiber Optic Gyroscope

Low Cost Fiber Optic Gyroscope

ER-FOG-851 (≤0.05~0.1º/h)
1. Bias stability: 0.05~0.1º/h;
2. 78.5×78.5×35mm;
3. Suitable for flight control platform.

Low Cost Fiber Optic Gyroscope

Low Cost Fiber Optic Gyroscope

Get Price Now

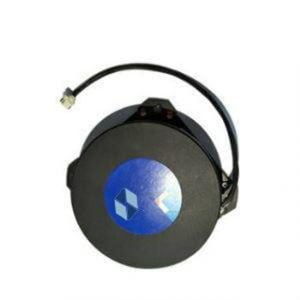

    ER-FOG-851 Low cost single axis FOG Gyro

    Introduction

    ER-FOG-851 Low Cost Fiber Optic Gyroscope (FOG) is specially designed according to the concept of traditional fiber optic gyroscope and adopts mature fiber optic gyroscope manufacturing technology. Our FOG gyroscopes have the characteristics of small volume, light weight, low power consumption, fast start-up, simple operation, convenient to use, which are widely used in INS, IMU, positioning system, north seeking system and platform stabilization.

    Applications

    Optical pod/flight control platform

    INS/IMU

    Platform stabilization device

    Positioning system

    North finding instrument

    High precise measurement/navigation system and servo-system

    Specifications

    No. Parameters ER-FOG-851D ER-FOG-851H Unit
    1 Measurement range -800~+800 -500~+500 (º)/s
    2 Bias stability 0.05~0.1 ≤0.05 (º)/h
    3 Bias repeatability 0.05~0.1 ≤0.05 (º)/h
    4 Scale factor non-linearity (1σ) ≤100 ≤50 ppm
    5 Scale factor misalignment (1σ) ≤100 ≤50 ppm
    6 Scale factor repeatability (1σ) ≤100 ≤50 ppm
    7 Power supply Single +5 Single +5 V
    8 Bandwidth ≥500 ≥500 Hz
    9 Run-up time 5 5 s
    10 Output format RS422 RS422 /
    11 External interface 21PIN 21PIN /
    12 Operating temperature -40~+60 -40~+60
    13 Vibration 6.06, 20~2000 6.06, 20~2000 g (RMS), Hz
    14 Dimension 78.5×78.5×35 78.5×78.5×35 mm³
    15 Weight ≤300 ≤300 g
    16 Threshold ≤0.05 ≤0.05 (º)/h
    17 Random walking coefficient ≤0.005 ≤0.005 (º)/h½
    18 Impact 100, 6~8 100, 6~8 G, ms
    19 Power consumption ≤4 ≤4 W

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Low Cost Fiber Optic Gyroscope, pls contact us: info@ericcointernational.com
