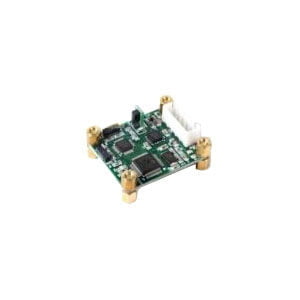

Digital Output-Full Attitude 3D Electronic Compass (Single Board)

Digital Output-Full Attitude 3D Electronic Compass (Single Board)

ER-EC-360B:
1. Heading accuracy 0.3~0.5°, resolution 0.1°;
2. Measurement range 0~360°;
3. Wide working temperature range -40~+85℃.

Digital Output-Full Attitude 3D Electronic Compass (Single Board)

Digital Output-Full Attitude 3D Electronic Compass (Single Board)

Get Price Now

    Digital Output-Full Attitude 3D Electronic Compass (Single Board)

    Introduction

    ER-EC-360B is a high precision full attitude 3D electronic compass that uses advanced hard and soft iron calibration algorithms to provide high precision course information in 360° roll, +/-90° full dip range. It has the characteristics of small volume and low power consumption and is more suitable for the measurement system with power consumption and volume sensitivity.

    The precise attitude of the product output carrier can be used in the system of full attitude rotation. This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement. The patented three-axis fluxgate uses the CPU to calculate the heading in real time, and the three-axis accelerometer compensates for the heading angle, which can provide accurate heading and obtain data even in extremely harsh environments. With the characteristics of small size and low power consumption, it is widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation, attitude system and so on.

    Features

    Measurement range 0~360°

    Heading accuracy 0.3°~0.5 °

    Industrial grade design

    Input voltage DC 5V

    Wide working temperature range -40~+85℃

    With hard magnetic, soft magnetic and tilt compensation

    The baud rate is adjustable from 2400~115200

    Working current: 40mA

    IP67 protection level

    Output RS232/RS485/TTL/MODBUS (optional)

    Small volume (55*37*24mm) (customizable)

    Applications

    Individual combat equipment

    Satellite solar antenna positioning

    Low AGV car

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Uav positioning and navigation

    Tilt based monitoring

    Various construction machinery angle control

    Inspection of bridges and dams

    Specifications

    Compass heading parameter Heading accuracy 0.3~0.5° (RMS, Pitch<85°)
     Resolution 0.1°
    Storage temperature 0.05°
    Compass tilt parameter Pitch accuracy 0.1°
    Roll accuracy 0.1° (Pitch<65°)
    0.2° (Pitch<80°)
    0.5° (Pitch<86°)
    Dip resolution 0.01°
    Slant range Pitch+90°; Roll 360°
    Calibration Hard iron calibration Yes
    Soft iron calibration Yes
    Tilt calibration Yes
    Physical property Size L55xW37xH24 (mm)
    Weight 75g
    RS232/RS485 interface connector Direct line
    Interfaces Characteristics Startup delay <50ms
    Maximum sampling rate 50 times per second
    RS232 communication rate 2400~19200 baud rate
    RS485 communication Optional
    TTL communication Optional
    Output format Hexadecimal number
    Analog output 4~20mA, 0~5V

    (Course angle direction only provided))

    Power Supply Support voltage DC+5V
    Current (maximum) 40mA
    Working mode 30mA
    Environment Storage temperature -40℃~+125℃
    Working temperature -40℃~+85℃
    Vibration resistance 2600g

    FAQ

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Full Attitude Single Board 3D Electronic Compass, pls contact us: info@ericcointernational.com
