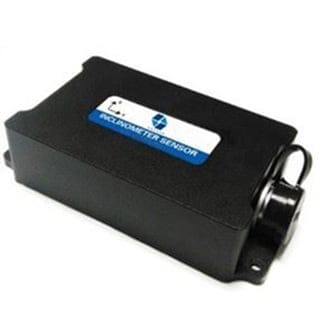

ER-TS-1222VO Features:
1. Two axis tilt monitoring;
2. Output 0~5V, 0.5~4.5V, 0~10V (optional);
3. Full range accuracy 0.005°, resolution 0.0007°.

Voltage Output Type Two Axis Tilt Sensor

Voltage Output Type Two Axis Tilt Sensor

Get Price Now

    Share to:

    Voltage Output Type Two Axis Tilt Sensor

    Introduction
    It is a standard industrial high precision analog voltage biaxial tilt sensor. Standard voltage is 0~5V, 0.5~4.5V, 0~10V (optional). At the same time, it can output through RS232, and can transmit 2000 meters long distance. The operator only needs to collect the voltage value of the sensor to calculate the current tilt angle of the object. The product has a built-in (MEMS) solid pendulum, which can be converted into a change in inclination by measuring the static gravity field.
    The product adopts MEMS sensing production technology, which can accurately compensate and correct temperature errors and linear errors. It has the characteristics of high precision, small size, high packaging technology, strong vibration resistance, built-in anti-radio frequency, anti-electromagnetic interference circuit, and is especially suitable for applications in harsh industrial environments such as underground trenchless machinery.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.005°, resolution 0.0007°
    Output 0~5V, 0~10V (optional)
    Wide-voltage input DC 11~36V
    Wide temperature working -40~+85℃
    Range 0~±5/±10/±15/±30° (optional)
    High vibration resistance >20000g
    IP67 protection
    Can output RS232 at the same time
    Volume (107*55*27mm) (customizable)

    Applications
    Railway gauge ruler, gauge instrument
    Satellite solar antenna positioning
    High altitude work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

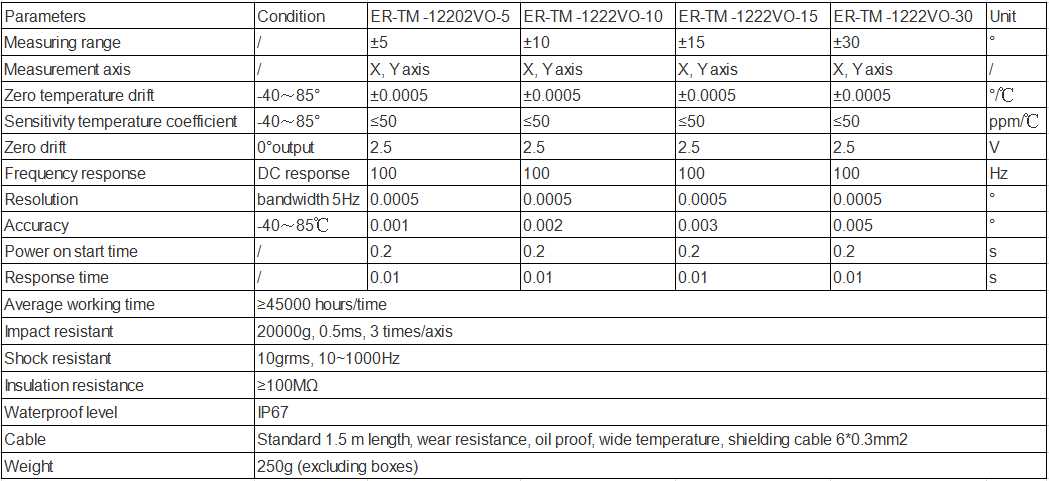

    Specifications

    ParameterConditionER-TS-1222VO-5ER-TS-1222VO-10ER-TS-1222VO-15ER-TS-1222VO-30Unit
    Measuring range/±5±10±15±30°
    Measurement axis/X ,Y axisX ,Y axisX ,Y axisX ,Y axis/
    Zero temperature drift-40~85°±0.0005±0.0005±0.0005±0.0005°/℃
    Sensitivity temperature coefficient-40~85°≤50≤50≤50≤50ppm/℃
    Zero drift0°output2.52.52.52.5V
    Frequency responseDC response100100100100Hz
    ResolutionBandwidth 5Hz0.00050.00050.00050.0005°
    Accuracy-40~85℃0.0010.0020.0030.005°
    Power on start time/0.20.20.20.2s
    Response time/0.010.010.010.01s
    Average working time≥45000 hours/time
    Impact resistant20000g, 0.5ms, 3 times/axis
    Shock resistant10grms, 10~1000Hz
    Insulation resistance≥100MΩ
    Waterproof levelIP67
    CableStandard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 6*0.3mm²
    Weight250g (excluding boxes)
