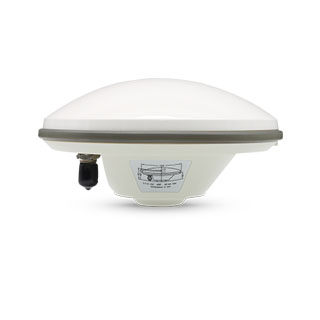

    ER-MA-03 GNSS Measurement Antenna

    Introduction

    The ER-MA-03 GNSS Measurement Antenna is a high performance survey GNSS antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. It meets the requirements of high precision and multi-constellation compatibility. And it can be used with a variety of receivers, suitable for various occasions.

    Features

    High Phase Center Stability: features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions.

    Tracking in Challenging Environments: The ability to receive low elevation signals with high gain and wide beam width makes ER-MA-03 an excellent choice for tracking visible satellites under challenging conditions.

    Strong Anti-interference Performance: The antenna LNA features excellent out-of-band rejection performance, which can suppress the electro magnetic interference, providing the stability and reliability of GNSS signals.

    Durable, Easy-installation design for Precision Applications: The compact and lightweight design makes ER-MA-03 highly portable and suitable for outdoor operating in precision applications. Its IP67 protection keeps ER-MA-03 from dust and water for quite a long time.

    Specifications

    Performance

    Signal Received

    GPS L1/L2/L5/L-Band
    GLONASS L1/L2/L3
    GALILEO E1/E5a/E5b/E6
    QZSS, L1/L2/L5/L6
    IRNSS L5, SBAS L1/L5

    Nominal Impedance

    50Ω

    Polarization

    RHCP

    Axial Ratio

    ≤3dB

    Gain at Zenith

    1164-1300MHz 5.5dBi(maximum)
    1520-1615MHz 5.5dBi(maximum)

    LNA

    LNA Gain

    40dB(typical)

    Noise Figure

    ≤2dB

    Output VSWR

    ≤2.0

    Passband Ripple

    ±2dB

    Operation Voltage

    +3.3 to +12VDC

    Operation Current

    ≤45mA

    Group Delay Ripple

    <5ns

    Mechanical

    Dimensions

    ¢152*62.2mm

    Connector

    TNC female

    Weight

    ≤500g

    Mounting

    BSW5/8”-11 screw, 12-14mm

    Environment

    Operating Temperature

    -40℃ to +85℃

    Storage Temperature

    -55℃ to +85℃

    Humidity

    95% non-condensing

    Water/Dust Resistance

    IP67

    Regulatory Compliance

    NGS, CE, FCC, RoHS
