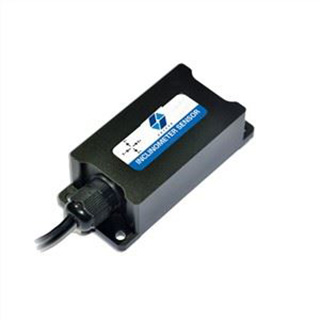

Small Size Digital Output Two Axis Tilt Sensor

Small Size Digital Output Two Axis Tilt Sensor

ER-TS-4256DI1 Features:
1. Biaxial tilt monitoring;
2. Wide voltage input DC 9~36V;
3. Full range accuracy 0.1°, resolution 0.01°.

Small Size Digital Output Two Axis Tilt Sensor

Small Size Digital Output Two Axis Tilt Sensor

Get Price Now

    Share to:

    Small Size Digital Output Two Axis Tilt Sensor

    Introduction
    ER-TS-4256DI1 is a new generation of digital small volume MEMS tilt sensor, with built-in dual channel earth gravity tilt unit, which can be converted into inclination change by measuring static gravity acceleration. Thus the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured. The output mode has RS232, RS485 or TTL, MODBUS level interface to choose from. Due to the built-in MCU control system, the output linearity of the sensor has been corrected twice to make up for the loss of accuracy caused by the lack of analog correction.
    The product adopts non-contact measurement original quantity, which can output the current attitude inclination in real time. The operation is simple, and there is no need to retrieve the two sides of the change. It can resist external electromagnetic interference and adapt to harsh industrial environment for long-term work, so it is an ideal choice for industrial automation control and platform attitude measurement. It has strong resistance to external electromagnetic interference and can be adapted to work in harsh industrial environment for a long time.

    Features
    Biaxial tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Industrial grade design
    Wide voltage input DC 9~36V (5V can be customized)
    Wide temperature working -40~+85℃
    Range 0~±90°(optional)
    High vibration resistance>3500g
    The baud rate is adjustable from 2400~115200
    IP67 protection level
    Output RS232/RS485/TTL/MODBUS (optional)
    Small volume (90*40*27mm) (customizable)

    Applications
    High voltage power line tower pole monitoring
    Satellite solar antenna positioning
    Tractor, deep tillage machinery
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    ParameterConditionER-TS-4256DI1-10ER-TS-4256DI1-30ER-TS-4256DI1-60ER-TS-4256DI1-90Unit
    Measuring range/±10±30±60±90°
    Measurement of shaft/X, Y AxisX, Y AxisX, Y AxisX , Y Axis/
    Zero temperature drift-40~85°±0.01±0.01±0.01±0.01°/℃
    Sensitivity temperature coefficient-40~85°≤150≤150≤150≤150ppm/℃
    Frequency responseDC response100100100100Hz
    ResolutionBandwidth 5Hz0.010.010.010.01°
    Precision-40~85℃0.10.10.10.1°
    Long-term stability-40~85℃<0.12°
    Power on start time/0.20.20.20.2s
    The response time/0.010.010.010.01s
    Rate5Hz output, 15Hz, 35Hz, 50Hz and 100HZ can set (RS485 does not have this function)
    The output signalRS232 / RS485 / RS422 / TTL/PWM/CAN/MODBUS can order
    Average working time≥55,000 hours/time
    Impact resistant3500 g, 0.5 ms, 3 times/shaft
    Shock resistant10grms, 10~1000Hz
    Insulation resistance≥100 mΩ
    Waterproof levelIP67
    CableStandard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.2mm²
    Weight145g (excluding boxes)
