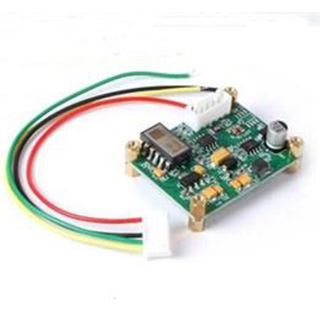

Low Cost Digital Output Type Two Axis Tilt Sensor

ER-TS-3269DI Features:
1. Dual axis tilt monitoring;
2. Output frequency 5~100HZ (optional);
3. Full range accuracy 0.01°, resolution 0.001°.

Share to:

Introduction

Low Cost Digital Output Type Two Axis Tilt Sensor

Introduction
ER-TS-3269DI is a digital output dual axis tilt sensor used in the field of industrial control. Built-in high-precision 16bit A/D converter and N-order filtering algorithm are used to measure the inclination and pitch angle of the sensor output relative to the horizontal plane. The output interface has RS232, RS485, RS422, TTL, PWM, CAN, MODBUS to choose from.
The product is equipped with a high-precision digital sensor, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The output corresponding frequency is 100Hz, which is a real industrial product, with reliable and stable performance, good scalability, and a variety of output options, making it suitable for various industrial control environments.

Features
Dual axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90°(optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Can output RS232/RS485/TTL/MODBUS (optional)
Small volume (46*35*8mm) (customizable)

Applications
High voltage power line tower pole monitoring
Satellite solar antenna positioning
AGV trolley
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams

Specifications

Parameter	Condition	ER-TS-3269DI-10	ER-TS-3269DI-30	ER-TS-3269DI-60	ER-TS-3269DI -90	Unit
Measuring range	/	±10	±30	±60	±90	°
Measurement axis	/	X,Y axis	X,Y axis	X,Y axis	X,Y axis	/
Zero temperature drift	-40~85°	±0.008	±0.008	±0.008	±0.008	°/℃
Sensitivity temperature coefficient	-40~85°	≤100	≤100	≤100	≤100	ppm/℃
Frequency response	DC response	100	100	100	100	Hz
Resolution	/	0.001	0.001	0.001	0.001	°
Accuracy	-40~85℃	0.01	0.02	0.03	0.05	°
Long-term stability	-40~85℃	<0.013	<0.022	<0.031	<0.054	°
Power on start time	/	0.2	0.2	0.2	0.2	s
Response time	/	0.01	0.01	0.01	0.01	s
Rate	5Hz output, 15Hz, 35Hz, 50Hz can set (RS485without this function)
Output signal	RS232/RS485/RS422/TTL/PWM/CAN/MODBUS
Average working time	≥45000 hours/time
Impact resistant	20000g, 0.5ms, 3 times/axis
Shock resistant	10grms, 10~1000Hz
Insulation resistance	≥100MΩ
Waterproof level	IP67
Cable	Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.3mm²
Weight	10g (excluding boxes)
