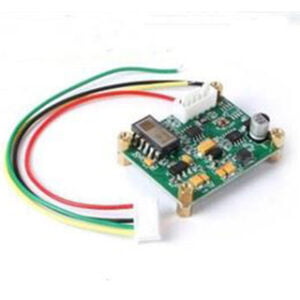

Low Cost Digital Output Type Two Axis Tilt Sensor

Low Cost Digital Output Type Two Axis Tilt Sensor

ER-TS-3269DI Features:
1. Dual axis tilt monitoring;
2. Output frequency 5~100HZ (optional);
3. Full range accuracy 0.01°, resolution 0.001°.

Low Cost Digital Output Type Two Axis Tilt Sensor

Low Cost Digital Output Type Two Axis Tilt Sensor

Get Price Now

    Share to:

    Low Cost Digital Output Type Two Axis Tilt Sensor

    Introduction

    ER-TS-3269DI is a digital output dual axis tilt sensor used in the field of industrial control. Built-in high-precision 16bit A/D converter and N-order filtering algorithm are used to measure the inclination and pitch angle of the sensor output relative to the horizontal plane. The output interface has RS232, RS485, RS422, TTL, PWM, CAN, MODBUS to choose from.

    The product is equipped with a high-precision digital sensor, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The output corresponding frequency is 100Hz, which is a real industrial product, with reliable and stable performance, good scalability, and a variety of output options, making it suitable for various industrial control environments.

    Features

    Dual axis tilt monitoring

    Full range accuracy 0.01°, resolution 0.001°

    Output frequency 5~100HZ (optional)

    Wide voltage input DC 9~36V

    Wide temperature working -40~+85℃

    Measuring range: 0~±90°(optional)

    High vibration resistance >20000g

    Baud rate 2400~115200 (adjustable)

    IP67 protection

    Can output RS232/RS485/TTL/MODBUS (optional)

    Small volume (46*35*8mm) (customizable)

    Applications

    High voltage power line tower pole monitoring

    Satellite solar antenna positioning

    AGV trolley

    Mining machinery, oil logging equipment

    Medical equipment

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Inspection of bridges and dams

    Specifications

    Parameter

    Condition

    ER-TS-3269DI-10

    ER-TS-3269DI-30

    ER-TS-3269DI-60

    ER-TS-3269DI -90

    Unit

    Measuring range

    /

    ±10

    ±30

    ±60

    ±90

    °

    Measurement axis

    /

    X,Y axis

    X,Y axis

    X,Y axis

    X,Y axis

    /

    Zero temperature drift

    -40~85°

    ±0.008

    ±0.008

    ±0.008

    ±0.008

    °/℃

    Sensitivity temperature coefficient

    -40~85°

    ≤100

    ≤100

    ≤100

    ≤100

    ppm/℃

    Frequency response

    DC response

    100

    100

    100

    100

    Hz

    Resolution

    /

    0.001

    0.001

    0.001

    0.001

    °

    Accuracy

    -40~85℃

    0.01

    0.02

    0.03

    0.05

    °

    Long-term stability

    -40~85℃

    <0.013

    <0.022

    <0.031

    <0.054

    °

    Power on start time

    /

    0.2

    0.2

    0.2

    0.2

    s

    Response time

    /

    0.01

    0.01

    0.01

    0.01

    s

    Rate

    5Hz output, 15Hz, 35Hz, 50Hz can set (RS485without this function)

    Output signal

    RS232/RS485/RS422/TTL/PWM/CAN/MODBUS

    Average working time

    ≥45000 hours/time

    Impact resistant

    20000g, 0.5ms, 3 times/axis

    Shock resistant

    10grms, 10~1000Hz

    Insulation resistance

    ≥100MΩ

    Waterproof level

    IP67

    Cable

    Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.3mm²

    Weight

    10g (excluding boxes)
