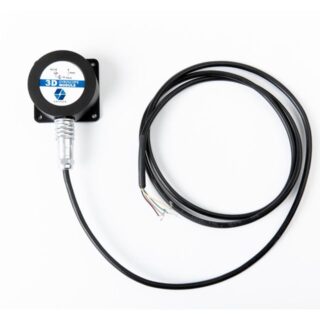

High Performance Voltage Output Type Dual Axis Tilt Sensor
ER-TS-5270VO voltage type two-axis inclinometer is a new generation of high-performance, small-sized, high-precision inclination sensor that can maintain high precision in complex motions, with a dynamic measurement accuracy of 0.3°, a stable accuracy of 0.05°, and a temperature drift of 0.01°/℃. The output mode has 0~5V, 0~10V standard interface can be selected, easy to integrate into the user control system.
The product has a built-in MCU control system, vertical gyroscope and accelerometer, and integrated attitude solver. Using the optimal digital filtering algorithm, noise reduction, with the N-order Kalman filtering algorithm, through nonlinear compensation, quadrature compensation, temperature drift and other compensation to eliminate error sources and improve measurement accuracy. It can accurately output objects in strong vibration and motion environment posture angle.
Two axis tilt monitoring
Dynamic measurement accuracy of 0.3°
Stable accuracy of 0.05°,
Vertical gyroscope/N-order Kalman filter
Input voltage DC 9~36V
Wide temperature working -40~+85℃
Range 0~±90° (optional)
High nonlinear compensation
Baud rate 2400~115200 (adjustable)
Protection level IP67
Output 0~5V, 0~10V (optional)
Small volume (60*59*29mm) (customizable)
Agricultural machinery, rotary drilling rig
Mining machinery, oil logging equipment
Hydraulic lifting platform
Angle control of various construction machinery
Inspection of bridges and dams
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in High Performace Voltage Output Type Dual Axis Tilt Sensor, pls contact us: firstname.lastname@example.org
