Output Type Dual Axis Tilt Sensor

Output Type Dual Axis Tilt Sensor

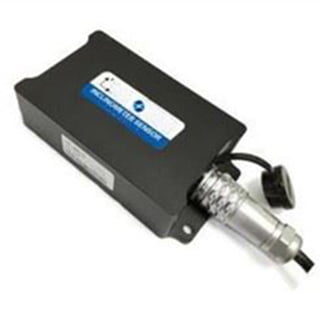

ER-TS-2286DI Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.005°, resolution 0.0007°;
3. Output frequency 5~100HZ (optional).

Output Type Dual Axis Tilt Sensor

Output Type Dual Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Output Type Dual Axis Tilt Sensor

    Introduction
    It is a high-precision biaxial inclination sensor with resolution of 0.0007°, accuracy of 0.005° and temperature drift of 0.0007°/℃. Output interface are RS232, RS485, RS422, TTL, CAN, MODBUS bus (optional).
    The product is equipped with a high-precision digital sensor, which can correct the temperature drift of the sensor according to the temperature change of the built-in temperature sensor to ensure the repeatability of the product in a low temperature or high temperature environment. The output corresponding frequency is 100Hz, which is an industrial grade industrial product, with reliable and stable performance, good scalability, and suitable for various industrial control environments.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.005°, resolution 0.0007°
    Output frequency 5~100HZ (optional)
    Wide voltage input DC 11~36V
    Wide temperature working -40~+85℃
    Measuring range 0~±5/±10/±15/±30°(optional)
    High vibration resistance >20000g
    Baud rate 2400~115200 (adjustable)
    IP67 Protection
    Can output RS232/RS485/TTL/MODBUS (optional)
    Small volume (107*55*27mm) (customizable)

    Applications
    High-voltage wire tower pole monitoring
    Satellite solar antenna positioning
    Precision machine tool horizontal control
    Precision laser platform equipment
    Medical equipment
    Railway locomotive
    Based on tilt monitoring
    Angle control of various construction machinery
    Bridge, dam, building monitoring

    Specifications

    Parameter Condition ER-TS-2286DI-5 ER-TS-2286DI-10 ER-TS-2286DI-15 EER-TS-2286DI-30 Unit
    Measuring range / ±5 ±10 ±15 ±30 °
    Measurement axis / X,Y axis X,Y axis X,Y axis X,Y axis /
    Zero temperature drift -40~85° ±0.0007 ±0.0007 ±0.0007 ±0.0007 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution / 0.0007 0.0007 0.0007 0.0007 °
    Accuracy -40~85℃ 0.005 0.006 0.0065 0.007 °
    Long-term stability -40~85℃ <0.006 <0.007 <0.007 <0.008 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Rate 5Hz output, 15Hz, 35Hz, 50Hz can set (RS485without this function)
    Output signal RS232/RS485/RS422/TTL/PWM/CAN/MODBUS
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 5*0.2mm²
    Weight 250g (excluding boxes)
