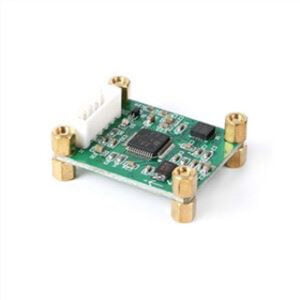

Digital Output Dual – Axis Tilt Sensor

Digital Output Dual-Axis Tilt Sensor

ER-TS-5249DI Features:
1. Two axis tilt monitoring;
2. Output frequency 5~100HZ optional;
3. Full range accuracy 0.3°, resolution 0.05°.

Digital Output Dual-Axis Tilt Sensor

Digital Output Dual – Axis Tilt Sensor

Get Price Now

    Share to:

    Digital Output Dual-Axis Tilt Sensor

    Introduction

    ER-TS-5249DI Digital Two Axis Tilt Meter is a new generation of digital small volume MEMS tilt sensor with built-in dual channel earth gravity tilt unit, which can be converted into inclination change by measuring static gravity acceleration. Thus the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured. The output mode of RS232, RS485 or TTL and MODBUS level interface standard are optional. Due to the built-in MCU control system, the output linearity of the sensor can be modified twice, which makes up for the accuracy decline caused by insufficient correction in the analog model.

    The product adopts non-contact measurement original quantity, which can output the current attitude inclination in real time. The operation is simple, and there is no need to retrieve the two surfaces of the phase change installation. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, which is an ideal choice for industrial automation control and platform attitude measurement.

    Features

    Two axis tilt monitoring

    Full range accuracy 0.3°, resolution 0.05°

    Output frequency 5~100HZ optional

    Input voltage DC 5V

    Wide temperature working -40~+85℃

    Range 0~±90° (optional)

    High vibration resistance >2500g

    Baud rate 2400~115200 (adjustable)

    IP67 protection level

    Output RS232/RS485/TTL/MODBUS (optional)

    Small volume (33*27*8mm) (customizable)

    Applications

    High voltage power line tower pole monitoring

    Satellite solar antenna positioning

    Aerial work vehicle

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Hydraulic lifting platform

    Tilt based monitoring

    Various construction machinery angle control

    Inspection of bridges and dams

    Specifications

    Parameter

    Condition

    ER-TS-5249DI-10

    ER-TS-5249DI-30

    ER-TS-5249DI-60

    ER-TS-5249DI-90

    Unit

    Measuring range

    /

    ±10

    ±30

    ±60

    ±90

    °

    Measurement of shaft

    /

    X,Y Axis

    X,Y Axis

    X,Y Axis

    X,Y Axis

    /

    Zero temperature drift

    -40~85°

    ±0.05

    ±0.05

    ±0.05

    ±0.05

    °/℃

    Sensitivity temperature coefficient

    -40~85°

    ≤200

    ≤200

    ≤200

    ≤200

    ppm/℃

    Frequency response

    DC response

    100

    100

    100

    100

    Hz

    Resolution

    Bandwidth 5Hz

    0.05

    0.05

    0.05

    0.05

    °

    Accuracy

    -40~85℃

    0.3

    0.3

    0.3

    0.3

    °

    Long-term stability

    -40~85℃

    <0.36

    °

    Power on start time

    /

    0.2

    0.2

    0.2

    0.2

    s

    Response time

    /

    0.01

    0.01

    0.01

    0.01

    s

    Rate

    5Hz output, 15Hz, 35Hz, 50Hz and 100HZ can set (RS485 without this function)

    Output signal

    RS232/RS485/ RS422/TTL/PWM/CAN/MODBUS

    Average working time

    ≥55,000 hours/time

    Impact resistant

    2500g, 0.5ms, 3 times/axis

    Shock resistant

    10grms, 10~1000Hz

    Insulation resistance

    ≥100MΩ

    Waterproof level

    IP65

    Cable

    Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.4mm²

    Weight

    6g (excluding boxes)
