High Precision Digital Output Type Dual Axis Tilt Sensor

High Precision Digital Output Type Dual Axis Tilt Sensor

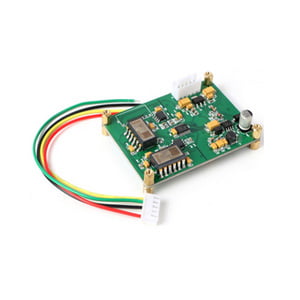

ER-TS-1221DI Features:
1. Two axis tilt monitoring;
2. Output frequency 5~100HZ (optional);
3. Full range accuracy 0.001°, resolution 0.0005°.

High Precision Digital Output Type Dual Axis Tilt Sensor

High Precision Digital Output Type Dual Axis Tilt Sensor

Get Price Now

    Share to:

    High Precision Digital Output Type Dual Axis Tilt Sensor

    Introduction
    This is a full temperature compensation high-precision two-axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interface has RS232, RS485, RS422, TTL, CAN, Modbus to choose from. This product is a customized inclinometer used to measure the inclination of rock and soil foundation pits. It integrates a 24-bit ARM high-end system with a resolution of 4 seconds and a response frequency of up to 100 Hz. The operator only needs to connect the inclinometer to the data transmission computer to make a high-precision inclinometer.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.001°, resolution 0.0005°
    Output frequency 5~100HZ (optional)
    Wide voltage input DC 11~36V(5V can be customized)
    Wide temperature working -40~+85℃
    Measuring range 0~±5/±10/±15/±30° (optional)
    High vibration resistance>20000g
    Baud rate 2400~115200 (adjustable)
    IP66 Protection
    Output RS232/RS485/RS422/TTL/MODBUS (optional)
    Small volume (68*48*13mm) (customizable)

    Applications
    High-voltage wire tower pole monitoring
    Satellite solar antenna positioning
    Precision machine tool horizontal control
    Precision laser platform equipment
    Medical equipment
    Railway locomotive
    Based on tilt monitoring
    Angle control of various construction machinery
    Monitoring of bridges, dams and buildings

    Specifications

    ParameterConditionER-TS-1221DI-5ER-TS-1221DI-10ER-TS-1221DI-15ER-TS-1221DI-30Unit
    Measuring range/±5±10±15±30°
    Measurement axis/X,Y axisX,Y axisX,Y axisX,Y axis/
    Zero temperature drift-40~85°±0.0005±0.0005±0.0005±0.0005°/℃
    Sensitivity temperature coefficient-40~85°≤50≤50≤50≤50ppm/℃
    Frequency responseDC response100100100100Hz
    Resolution/0.00050.00050.00050.0005°
    Accuracy-40~85℃0.0010.0020.0030.005°
    Long-term stability-40~85℃<0.002<0.003<0.004<0.006°
    Power on start time/0.20.20.20.2s
    Response time/0.010.010.010.01s
    Rate5Hz output, 15Hz, 35Hz, 50Hz can set(RS485without this function)
    Output signalRS232/RS485/RS422/TTL/PWM/CAN
    Average working time≥45000 hours/time
    Impact resistant20000g, 0.5ms, 3 times/axis
    Shock resistant10grms, 10~1000Hz
    Insulation resistance≥100MΩ
    Waterproof levelIP67
    CableStandard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 5*0.3mm²
    Weight20g (excluding boxes)
