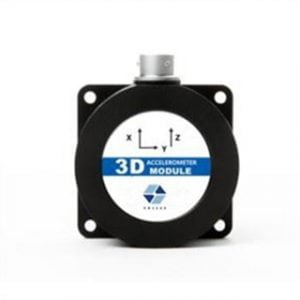

Digital Three-Axis Acceleration Sensor

Digital Three-Axis Acceleration Sensor

ER-AS-95 Features:
1. Accuracy: 0.01g, resolution: 0.001g;
2. Three axes (X, Y, Z) are optional;
3. Impact resistance 2000g.

Digital Three-Axis Acceleration Sensor

Digital Three-Axis Acceleration Sensor

Get Price Now



    Share to:

    Introduction

    Digital Three-Axis Acceleration Sensor

    Introductions

    ER-AS-95 Digital Three-Axis Acceleration Sensor is a series of widely used accelerometer products, which can be applied to vibration tests, impact tests and other fields. The product adopts digital interface output, CAN/CAN open is optional, different ID codes can be set, and multiple sensors can be connected in series for long distances to facilitate multi-point measurement data and data analysis.

    Small size, low power consumption, calibrated, fixed structure, stable output. The new electronic configuration provides solid-state power for reset, provides full protection against overpowering, and provides long-term stability— deviation typical values of the scaling factor of less than 0.1% over the full range. This series of products have the characteristics of fixed structure, low power consumption, excellent deviation stability and so on, which guarantee stable output reliability.

    Features

    Three axes (X, Y, Z) are optional

    Accuracy: 0.01g, resolution: 0.001g

    Impact resistance: 2000g

    Wide voltage input DC: 9 ~ 36V

    Wide temperature working: -40 ~ +85℃

    Industrial grade design

    Excellent deviation stability, anti-vibration

    Protection level IP67

    Low volume (90 * 40 * 27 mm)

    Output CAN/CAN open (optional)

    Range ±1g/±2g/± 4g /±8g/±16g/±32g/±40g optional

    Applications

    Crash recording, fatigue monitoring and prediction

    Satellite solar antenna positioning

    Tractor, deep tillage machinery

    Mining machinery, oil logging equipment

    Medical equipment

    Cloud roadbed analysis

    Fault detection of high-speed railway

    Tilt based monitoring

    Various construction machinery Angle control

    Bridge dam, monitoring

    Specifications
