Digital Type Full Attitude 3D Electronic Compass

ER-EC-360
1. Output frequency 5~100HZ optional;
2. Measurement range 0~360° full attitude;
3. Course accuracy 0.3~0.5°, resolution 0.1°.

Digital Type Full Attitude 3D Electronic Compass

Digital-Type-Full-Attitude-3d-Electronic-Compass

Get Price Now

    Digital Type Full Attitude 3D Electronic Compass

    The ER-EC-360 is a high precision and full attitude 3D electronic compass that uses hard and soft iron calibration algorithms to provide high precision course information in 360° roll and +/-90° full dip range. It has the characteristics of small volume and low power consumption and is more suitable for the measurement system with power consumption and volume sensitivity.

    The precise attitude of the product output carrier can be used in the system of full attitude rotation. This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement. The patented triaxial fluxgate, which adopts the CPU to calculate the course in real time and the triaxial accelerometer to compensate the course angle, provides accurate course data even in extremely harsh environments. It also has the features of small size, low power consumption that is widely used in oil logging, antenna pointing, vehicle navigation, attitude system and other fields.

    Features

    Measurement range 0~360° full attitude
    Course accuracy 0.3~0.5°, resolution 0.1°
    Output frequency 5~100HZ optional
    Input voltage DC 5V
    Wide temperature working -40~+85℃
    With hard magnetic, soft magnetic and tilt compensation
    The baud rate is adjustable from 2400~115200
    Working current: 40mA
    IP67 protection level
    Output RS232/RS485/TTL/MODBUS (optional)
    Small volume (72*16*12mm) (customizable)

    Specifications

    Compass heading parameter Heading accuracy 0.3~0.5° (RMS, Pitch<85°)
    Resolution 0.1°
    Repeatability 0.05°
    Compass tilt parameter Pitch accuracy 0.1°
    Roll accuracy 0.1° (Pitch<65°)
    0.2° (Pitch<80°)
    0.5° (Pitch<86°)
    Dip resolution 0.01°
    Slant range Pitch+90 °; Roll 360 °
    Calibration Hard iron calibration Yes
    Soft iron calibration Yes
    Tilt calibration Yes
    Physical property Size L72xW16xH12 (mm)
    Weight 6g
    RS232/RS485 interface connector 5 pin
    Interface Characteristics Startup delay <50ms
    Maximum sampling rate 50 times per second
    RS232 communication rate 2400~19200 baud rate
    RS 485 communication Optional
    TTL communication Optional
    Output format hexadecimal number
    Power supply Support voltage DC +5V
    Current (maximum) 40mA
    Working mode 30mA
    Environment Storage temperature -40℃~+125℃
    Working temperature -40℃~+85℃
    Vibration resistance 3000g



    Applications

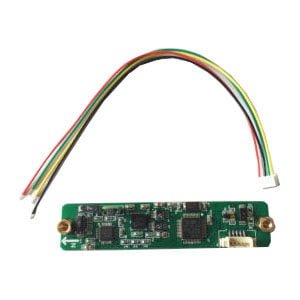

    Individual combat equipment
    Satellite solar antenna positioning

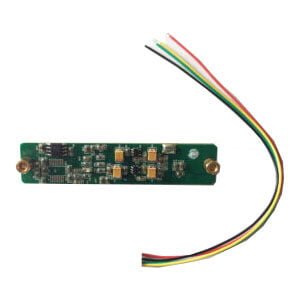

    Low AGV car
    Mining machinery, oil logging equipment
    Medical equipment
    Gimp leveling
    UAV positioning and navigation
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    FAQ

    1. What are the quotation methods?
    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?
    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?
    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?
    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Digital Type Full Attitude 3D Electronic Compass, pls contact us: info@ericcointernational.com
