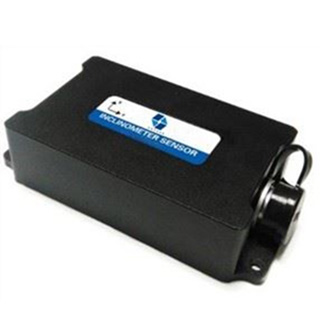

Voltage Output Type Of Dual-axis Tilt Sensor

Voltage Output Type Of Dual-axis Tilt Sensor

ER-TS-3260VO Features:
1. Dual axis tilt monitoring;
2. Output 0~5V, 0~10V (optional);
3. Full range accuracy 0.01°, resolution 0.001°.

Voltage Output Type Of Dual-axis Tilt Sensor

Voltage Output Type Of Dual-axis Tilt Sensor

Get Price Now

    Voltage Output Type Of Dual-axis Tilt Sensor

    Introduction

    ER-TS-3260VO is an analog voltage biaxial tilt sensor. Users only need to collect the sensor voltage value which can calculate the current object tilt angle. The built-in (MEMS) solid pendulum measures the change of static gravity field, which is converted into the change of inclination, and the change is output through the voltage (0~10V, 0~5V optional).

    The product adopts the non-contact measuring principle, which can output the current attitude and inclination angle in real time. The operation is simple, there is no need to look for two faces with relative changes. It has the characteristics of small size and strong shock and vibration resistance, especially suitable for harsh industrial environments.

    Features

    Dual axis tilt monitoring

    Full range accuracy 0.01°, resolution 0.001°

    Output 0~5V, 0~10V (optional)

    Wide voltage input DC 9~36V

    Wide temperature working -40~+85℃

    Measuring range: 0~±90° (optional)

    High vibration resistance >20000g

    IP67 Protection

    Can output RS232 at the same time

    Small volume (90*40*27mm) (customizable)

    Applications

    Railway gauge ruler, gauge instrument

    Satellite solar antenna positioning

    Aerial work truck

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Inspection of bridges and dams

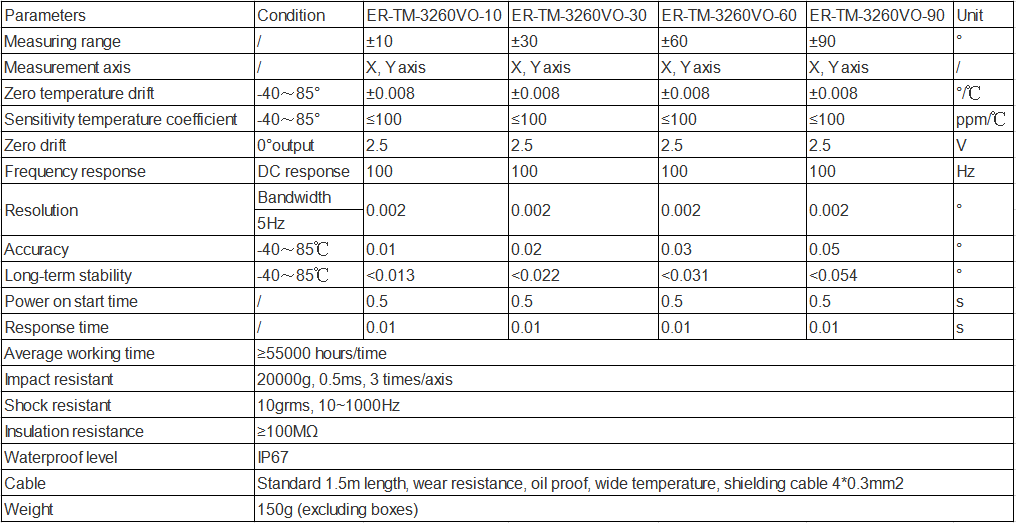

    Specifications

    Voltage Output Type Of Dual-axis Tilt Sensor

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Voltage Output Type Of Dual-axis Tilt Sensor, pls contact us: info@ericcointernational.com
