Voltage Type Double Axis Tilt Switch
Introduction

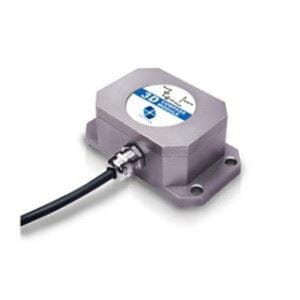

ER-TS-08 is a high-precision, high-performance voltage output dual-axis four-way digital DIP switch with a measurement range of 0~±90°. When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.
The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light. The product is used in industries related to horizontal security alarm and platform level monitoring. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.
Features
Biaxial tilt monitoring
Full range accuracy 0.05°, resolution 0.01°
Alarm threshold can be set by the user
Wide voltage input DC~36V
Wide temperature working -40~+85℃
Range 0~±90° (optional)
High vibration resistance>3500 g
Industrial grade design
IP67 protection level
Switching output (voltage), RS232 output at the same time
Volume (92*48*36mm) (customizable)
Applications
Railway gauge
Satellite solar antenna positioning
Tractor, deep tillage machinery
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams
Specifications
Spec. | Conditions | ER-TS-08 | Unit | |||
Measurement range | / | ±10 | ±30 | ±60 | ±90 | ° |
Measuring axis | / | X, Y axis | X, Y axis | X, Y axis | X, Y axis | / |
Alarm axis | / | X, Y axis | X, Y axis | X, Y axis | X, Y axis | / |
Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
Resolution | Bandwidth 5Hz | 0.001 | 0.001 | 0.001 | 0.001 | ° |
Accuracy | -40~85℃ | 0.01 | 0.02 | 0.03 | 0.05 | ° |
Long-term stability | -40~85℃ | 0.01 | 0.02 | 0.03 | 0.05 | ° |
Power on startup time | / | 0.5 | S | |||
Output signal | Switching (voltage) output, can be RS232, RS485, TTL optional | |||||
Mean time between failures | ≥55000 hour/time | |||||
Shock resistance | 3500g, 0.5ms, 3times/axis | |||||
Anti-vibration | 10grms, 10~1000Hz | |||||
Insulation resistance | ≥100MΩ | |||||
Waterproofing grade | IP67 | |||||
Cable | Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielding cable 8*0.3mm² | |||||
Weight | 150g (without packing) |
