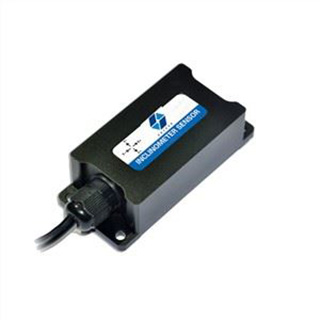

High Precision CANopen Output Type Two Axis Tilt Sensor

High Precision CANopen Output Type Two Axis Tilt Sensor

ER-TS-4255CA Features:
1. Biaxial tilt monitoring;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output frequency 5~100HZ optional.

High Precision CANopen Output Type Two Axis Tilt Sensor

High Precision CANopen Output Type Two Axis Tilt Sensor

Get Price Now

    Share to:

    High Precision CANopen Output Type Two Axis Tilt Sensor

    Introduction
    ER-TS-4255CA is a CANopen output biaxial tilt meter developed for industrial fields control. The product has a built-in tilt unit of the latest MEMS production process, which is small in size, low in power consumption, and has high consistency and stability. The working temperature can reach industrial grade -40~+85, which is a very cost-effective product.
    The product adopts non-contact measurement original quantity, which can output the current attitude inclination in real time. It is simple to use, and there is no need to retrieve the two surfaces of phase change installation. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, which is an ideal choice for industrial automation control and platform attitude measurement.

    Features
    Biaxial tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Wide voltage input DC 9~36V (5V can be customized)
    Wide temperature working -40~+85℃
    Range 0~±90° (optional)
    High vibration resistance>3500 g
    Baud rate100K~500K bps
    IP67 protection level
    Low output CANopen
    Small volume (90*40*27mm) (customizable)

    Applications
    High voltage power line tower pole monitoring
    Satellite solar antenna positioning
    Aerial work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    ParameterConditionER-TS-4255CA-10ER-TS-4255CA-30ER-TS-4255CA-60ER-TS-4255CA-90Unit
    Measuring range/±10±30±60±90°
    Measurement of shaft/X, Y AxisX, Y AxisX, Y AxisX, Y Axis/
    Zero temperature drift-40~85°±0.01±0.01±0.008±0.01°/℃
    Sensitivity temperature coefficient-40~85°≤150≤150≤150≤150ppm/℃
    Frequency responseDC response100100100100Hz
    The resolution of theBandwidth 5Hz0.010.010.010.01°
    Precision-40~85℃0.10.10.10.1°
    Long-term stability-40~85℃<0.12°
    Power on start time/0.20.20.20.2s
    The response time/0.010.010.010.01s
    Rate5Hz output, 15Hz, 35Hz, 50Hz and 100HZ can set
    The output signalCAN can order
    Average working time≥55,000 hours/time
    Impact resistant3500 g, 0.5 ms, 3 times/shaft
    Shock resistant10grms, 10~1000Hz
    Insulation resistance≥100 mΩ
    Waterproof levelIP67
    CableStandard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.2mm²
    Weight145g (excluding boxes)
