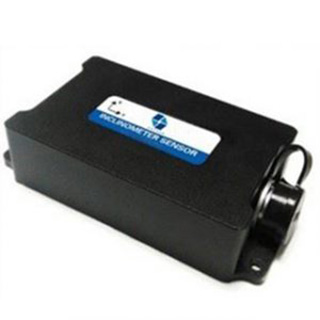

CANopen Type Dual Axis Tilt Sensor

ER-TS-3265CA Features:
1. Dual axis tilt monitoring;
2. Full range accuracy 0.01°, resolution 0.001°;
3. Output frequency 5~100HZ (optional).

CANopen Type Dual Axis Tilt Sensor

Get Price Now

    CANopen Type Dual Axis Tilt Sensor

    Introduction

    ER-TS-3265CA CANopen output dual axis tilt sensor is specially designed for industrial control field, using industrial standard isolator CAN transceiver, built-in high-precision 16bit A/D differential converter, through N-order filtering algorithm, so as to measure the sensor output relative to the horizontal plane tilt and pitching angle.

    The product has a built-in high-precision temperature sensor, which can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product in a low temperature or high temperature environment. The output response frequency standard is up to 100Hz, which is suitable for various harsh industrial control environments.

    Features

    Dual axis tilt monitoring

    Full range accuracy 0.01°, resolution 0.001°

    Output frequency 5~100HZ (optional)

    Wide voltage input DC 9~36V

    Wide temperature working -40~+85℃

    Measuring range: 0~±90° (optional)

    High vibration resistance >20000g

    Baud rate 100K~500K bps

    IP67 Protection

    Output CANopen

    Small volume (90*40*27mm) (customizable)

    Specifications

    CANopen Type Dual Axis Tilt Sensor


    Applications

    High voltage wire tower monitoring

    Satellite solar antenna positioning

    High altitude work vehicle

    Mining machinery, oil logging equipment

    Medical equipment

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Inspection of bridges and dams

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in CANopen Type Dual Axis Tilt Sensor, pls contact us: info@ericcointernational.com
