Digital Output Type Dual Axis Tilt Sensor

Digital Output Type Dual Axis Tilt Sensor

ER-TS-1220DI Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.001°, resolution 0.0005°;
3. Output frequency 5~100HZ (optional).

Digital Output Type Dual Axis Tilt Sensor

Digital Output Type Dual Axis Tilt Sensor

Get Price Now

    Digital Output Type Dual Axis Tilt Sensor

    Introduction

    It is a full temperature compensation high-precision two-axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interface has RS232, RS485, RS422, TTL, Modbus to choose from.

    The tilt sensor adopts digital signal transmission, supports professional computer software, data measurement and recording. It is a non-contact installation. The operator only needs to fix the sensor on the surface of the object to be measured with screws to calculate the horizontal angle of the object. It also has the advantages of strong resistance to external electromagnetic interference and strong earthquake resistance.

    Features

    Two axis tilt monitoring

    Full range accuracy 0.001°, resolution 0.0005°

    Output frequency 5~100HZ (optional)

    Wide voltage input DC 11~36V

    Wide temperature working -40~+85℃

    Measuring range 0~±5/±10/±15/±30°(optional)

    High vibration resistance >20000g

    Baud rate 2400~115200 (adjustable)

    IP67 Protection

    Output RS232/RS485/TTL/MODBUS (optional)

    Small volume (107*55*27mm) (customizable)

    Applications

    High voltage wire tower monitoring

    Satellite solar antenna positioning

    Aerial work truck

    Mining machinery, oil logging equipment

    Medical equipment

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Inspection of bridges and dams

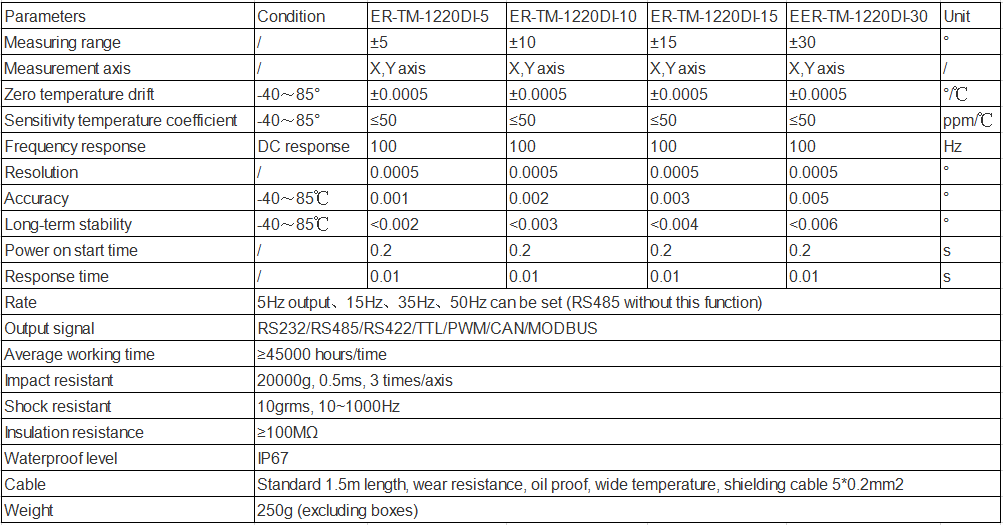

    Specifications

    Digital Output Type Dual Axis Tilt Sensor

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Digital Output Type Dual Axis Tilt Sensor, pls contact us: info@ericcointernational.com
