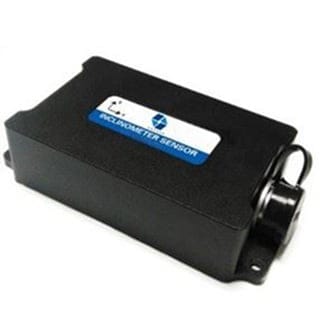

High Precision CAN Open Dual Axis Tilt Sensor

ER-TS-1225CA Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.001°, resolution 0.0005°;
3. Output frequency 5~100HZ (optional).

High Precision CAN Open Dual Axis Tilt Sensor

Get Price Now

    High Precision CAN Open Dual Axis Tilt Sensor

    Introduction

    It is a high-precision CANopen biaxial tilt sensor mainly aimed at the field of industrial field control, the product adopts the industrial standard isolator CAN transceiver with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/°C.

    The product has a built-in high-precision temperature sensor that can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product in a low temperature or high temperature environment. The output response frequency standard is up to 100Hz, which is suitable for various harsh industrial control environments.

    Features

    Two axis tilt monitoring

    Full range accuracy 0.001°, resolution 0.0005°

    Output frequency 5~100HZ (optional)

    Wide-voltage input DC 11~36V

    Wide temperature working -40 ~ +85℃

    Range 0~±5/±10/±15/±30° (optional)

    High vibration resistance>20000g

    Baud rate: 100K~500K bps

    IP67 Protection

    Output CANopen

    Volume (107*55*27mm) (customizable)

    Applications

    High voltage wire tower monitoring

    Satellite solar antenna positioning

    High altitude work vehicle

    Mining machinery, oil logging equipment

    Medical equipment

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Bridges and DAMS, monitoring

    Specifications

    Parameters Condition ER-TM-1225CA-5 ER-TM-1225CA-10 ER-TM-1225CA-15 ER-TM-1225CA -30 Unit
    Measuring range / ±5 ±10 ±15 ±30 °
    Measurement

    axis

    / X,Y axis X,Y axis X,Y axis X,Y axis
    Zero temperature drift -40~85° ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution bandwidth 5Hz 0.0005 0.0005 0.0005 0.0005 °
    Accuracy -40~85℃ 0.001 0.002 0.003 0.005 °
    Long-term stability -40~85℃ <0.002 <0.003 <0.005 <0.006 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Baud Rate 100K~500K bps can be set, others need customized
    Output signal CAN
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥ 100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 5*0.2mm2
    Weight 250g (excluding boxes)

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in High Precision CAN Open Dual Axis Tilt Sensor, pls contact us: info@ericcointernational.com
