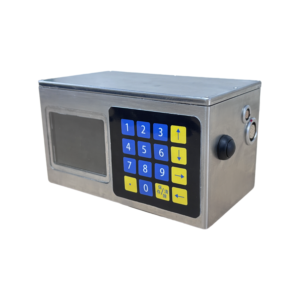

Low Cost Mining MEMS Gyro Rig Aligner

YHZ90/360A
1.Adopts the latest MEMS gyroscope technology, featuring a compact square design, small size and light weight for easy portability.
2.Equipped with a latest single-axis MEMS gyroscope and three-axis MEMS accelerometer, which output inclination, roll and azimuth in real time.
3.180S precise alignment , the azimuth accuracy up to 0.25°.

Share to:

Introduction

YHZ90/360A

Introduction

Low Cost MEMS Mining Intrinsically Safe Rig Hole-Opening Orienter (hereinafter referred to as the Orienter) is an intrinsically safe inertial measuring instrument for mining applications.

It consists of a single-axis MEMS gyroscope, three-axis accelerometer, indexing mechanism, power supply, display and driver board, and enclosure assembly.Its core function is the precise measurement and orientation of the azimuth and inclination angles during rig hole-opening in scenarios such as underground coal mines and geological drilling.Immune to geomagnetic and ferromagnetic interference, it is a key instrument for achieving accurate drilling.

Core Advantages

Adopts the latest MEMS gyroscope technology, featuring a compact square design, small size and light weight for easy portability.
Equipped with a latest single-axis MEMS gyroscope and three-axis MEMS accelerometer, which output inclination, roll and azimuth in real time.
180S precise alignment , the azimuth accuracy up to 0.25°.
Self north seeking function and immune to magnetic interference.
Supports full IoT connectivity, including Ethernet port, Bluetooth and WiFi.

Function

One-key automatic north-seeking: Establishes a true north reference with no need for manual line alignment or plumb bob.
Real-time attitude display: Direct digital readout of inclination, roll and azimuth angles.
Data storage and transmission: Local storage + IoT communication upload, supporting APP and platform management.
Laser pointing / ranging (high-end configuration): Assists rig alignment at the hole-opening point to improve efficiency.
Error compensation: Built-in accelerometer for automatic compensation to ensure high accuracy.

Specification

Model No.	YHZ90/360A
1	Attitude and Heading Accuracy	≤1°	≤0.5°	≤0.25°
2	Attitude Accuracy	≤0.1°
3	Roll Angle Measurement Range	+30°~-30°
4	Pitch Angle measurement range	+30°~-30°
5	Heading Measurement Range	0°~360°
6	Alignment Time	≤3min
7	Battery Life	≥8H
8	Data Update Rate	Configurable
9	Dimension	190x92x93mm
