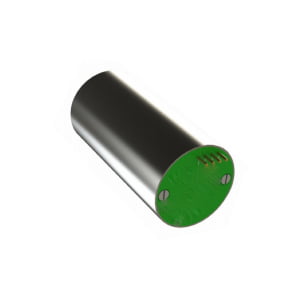

Low Cost FOG Rate Gyroscope

Low Cost FOG Rate Gyroscope

ER-FOG-25 (1-5°/h)
1. Bias stability: 1-5°/h;
2. Small size: φ25mm*40mm;
3. Measuring range: 500°/s.

Low Cost FOG Rate Gyroscope

Low Cost FOG Rate Gyroscope

Get Price Now

    Introduction

    ER-FOG-25 High Precision & Low Cost FOG Rate Gyro (Specially Designed Substitute of Liquid Floating Rate Gyro) is specially designed for attitude measurement of vehicle, and can substitute liquid floating or semi-liquid floating rate gyro. It is simple to install, easy to use, stable and reliable. Users only need to use a plug to provide power supply, external motherboard, and receive gyro output data. The product can be also used for navigation, guidance and other fields.

    Specifications

     Measuring range: 500°/ s, adjustable;
    Bias stability of (1σ): 1-5°/ h;
    Resolution: 0.5°/ h;
    Scale factor non-linearity (1σ): 300ppm;
    Random walk coefficient: 0.1 (°/√h);
    Bandwidth: not less than 400Hz;
    Power consumption: less than 3W;
    Working temperature: M1A: -40°C to +60°C; M2: -55°C~+85°C;
    Power Supply: ±5V DC (Power Accuracy ±5%, Ripple Less than 30mV)
    interface: RS-422
    Dimensions: φ25mm*40mm
    Weight: 60±5g

    Dimension Figure

    Low Cost FOG Rate Gyroscope Dimension Figure
