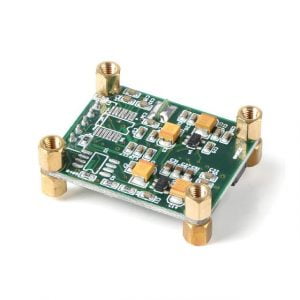

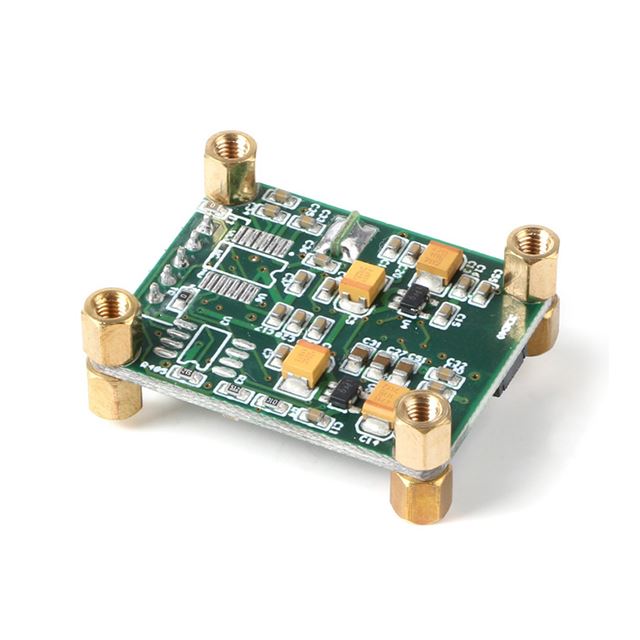

40° Tilt Compensation - 3D Electronic Compass (Single Board)

40° Tilt Compensation – 3D Electronic Compass (Single Board)

ER-EC-340:
1. Heading accuracy 1°;
2. Tilt range ±40°, accuracy 0.15°;
3. With hard magnetic, soft magnetic and tilt compensation.

40° Tilt Compensation – 3D Electronic Compass (Single Board)

40° Tilt Compensation - 3D Electronic Compass (Single Board)

Get Price Now

    40° Tilt Compensation – 3D Electronic Compass (Single Board)

    Product Description

    It is a high-precision three-dimensional electronic compass, which introduces the patented 3D compensation technology of the United States, making it possible to provide accurate heading data even at the tilt angle of ±40°.

    The product is small in size and low in power consumption, and can be used in many fields such as antenna stability, automotive, and system integration. Strong shock resistance, can work normally in extremely harsh environments, which is more suitable for today’s miniaturized high-precision measurement.

    Features

    Measurement range 0~360°

    Heading accuracy 1°, tilt range ±40°

    Industrial grade design

    Input voltage DC 5V

    Wide temperature working -40~+85℃

    With hard magnetic, soft magnetic and tilt compensation

    Baud rate 2400~115200 (adjustable)

    Working current: 40mA

    IP67 protection level

    Output RS232/RS485/TTL/MODBUS (optional)

    Small volume (33*27*8mm) (customizable)

    Applications

    Individual combat equipment

    Satellite solar antenna positioning

    Low AGV car

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    positioning and navigation

    Tilt based monitoring

    Various construction machinery angle control

    Inpection of bridges and dams

    Specifications

    Compass heading parameter Heading accuracy 1° (RMS, pitching<85°)
    Resolution 0.1°
    Repeatability 0.3°
    Compass tilt parameter Pitch accuracy 0.15°
    Roll accuracy 0.15°
    Dip resolution 0.01°
    Tilting range Pitch±40°, Roll±40°
    Calibration Hard iron calibration Yes
    Soft iron calibration Yes
    Tilt calibration Yes
    Physical property Size L33xW27xH8 (mm)
    Weight 8g
    Rs-232/RS485 interface connector 5 pin
    characteristics of interfaces Startup delay <50ms
    Maximum sampling rate 50 times per second
    RS-232 communication rate 2400~19200 baud rate
    RS-485 communication Optional
    TTL communication Optional
    Output format Hexadecimal high performance protocol
    Power supply Support the voltage DC+5V
    Current (maximum) 40mA
    Working mode 30mA
    Environment Storage temperature -40℃~+125℃
    Working temperature -40℃~+85℃
    Vibration resistance 2600g



    FAQ

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in ER-EC-340 40° Tilt Compensation Type 3D electronic compass – Digital Type, pls contact us: info@ericcointernational.com
