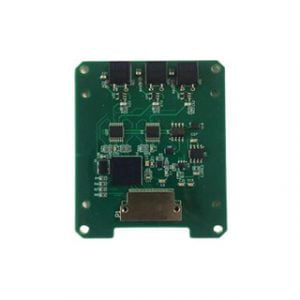

Small Volume I/F Conversion Circuit
Introduction
ER-IFC-G10M is a high-precision current/frequency conversion circuit using charge integration. This conversion circuit can continuously convert the current signals output by three accelerometers at the same time. The three accelerometers work independently without any influence on each other. It has the characteristics of small volume, high output frequency and high precision.
Specifications
Power supply: VCC=+15V±3%, VEE=-15V±3%, VDD=+5V±3%
Spec. | Test condition | Min | Typical | Max | Unit |
Measuring range FS | whole temperature range | ±13 | - | - | - |
Scale factor SF | whole temperature range | - | 20000 | - | pulses/s/mA |
Maximum output frequency | whole temperature range | - | - | 333 | kHz |
Zero position F0 | Room temperature | 0 | - | 10 | nA |
Zero deviation temperature coefficient | Full temperature range (absolute value) |
- | 0.1 | nA/℃ | |
Temperature coefficient (absolute value) |
whole temperature range | - | - | 5 | ppm/℃ |
Scale factor asymmetry | I=±1mA, TC =25℃ | 0 | 50 | 100 | ppm |
Synthetic non-linearity | whole temperature range 1mA≤|I|≤FS | - | 30 | 50 | ppm |
Single power stability (1σ) | I=±1mA, TC =25℃ | - | 10 | 20 | ppm |
Operating temperature range TC | - | -45 | - | 70 | ℃ |
Size | 65*65*10.5 | mm | - | - | - |
Interface form | J30JZ/LN25ZKWA000 | - | - | - | - |
Power supply requirements
Items | Recommended range | Steady-state current | Internal capacitance value2 |
+15V Power supply | +15V±3% | ≤0.10A | ≤50uF |
-15V Power supply | -15V±3% | ≤0.10A | ≤50uF |
+5V Power supply | +5V±3% | ≤0.20A | ≤50uF |
Connector pin definition
No. | Name | Type | Details | To |
1 | VCC | Power | -15V power supply | DC/DC power panel |
2 | AGND | Power Ground | ±15V Power supply, input current ground | DC/DC power panel |
3 | VEE | Power | -15V power supply | DC/DC power panel |
4 | VDD | Power | 5V power supply | DC/DC power panel |
5 | NC | NC | Internal debugging, need to be suspended | - |
6 | NC | NC | ||
7 | NC | NC | ||
8 | NC | NC | ||
9 | NC | NC | ||
10 | F3B | output | Z channel negative pulse output | Pulse acquisition board |
11 | F2B | output | Y channel negative pulse output | |
12 | F2A | output | Y channel positive pulse output | |
13 | Fclk | output | 256kHz Synchronous square wave | |
14 | IX | input | X channel accelerometer input high end | accelerometer |
15 | IY | input | Y channel accelerometer input high end | accelerometer |
16 | IZ | input | Z channel accelerometer input high end | accelerometer |
17 | AGND | Power Ground | ±15V Power supply, input current ground | DC/DC power panel |
18 | DGND | Power Ground | 5V Power Ground | DC/DC power panel |
19 | NC | NC | Internal debugging, needs to be suspended | - |
20 | NC | NC | ||
21 | NC | NC | ||
22 | NC | NC | ||
23 | F3A | output | Z channel positive pulse output | Pulse acquisition board |
24 | F1B | output | X channel negative pulse output | |
25 | F1A | output | X channel positive pulse output |
