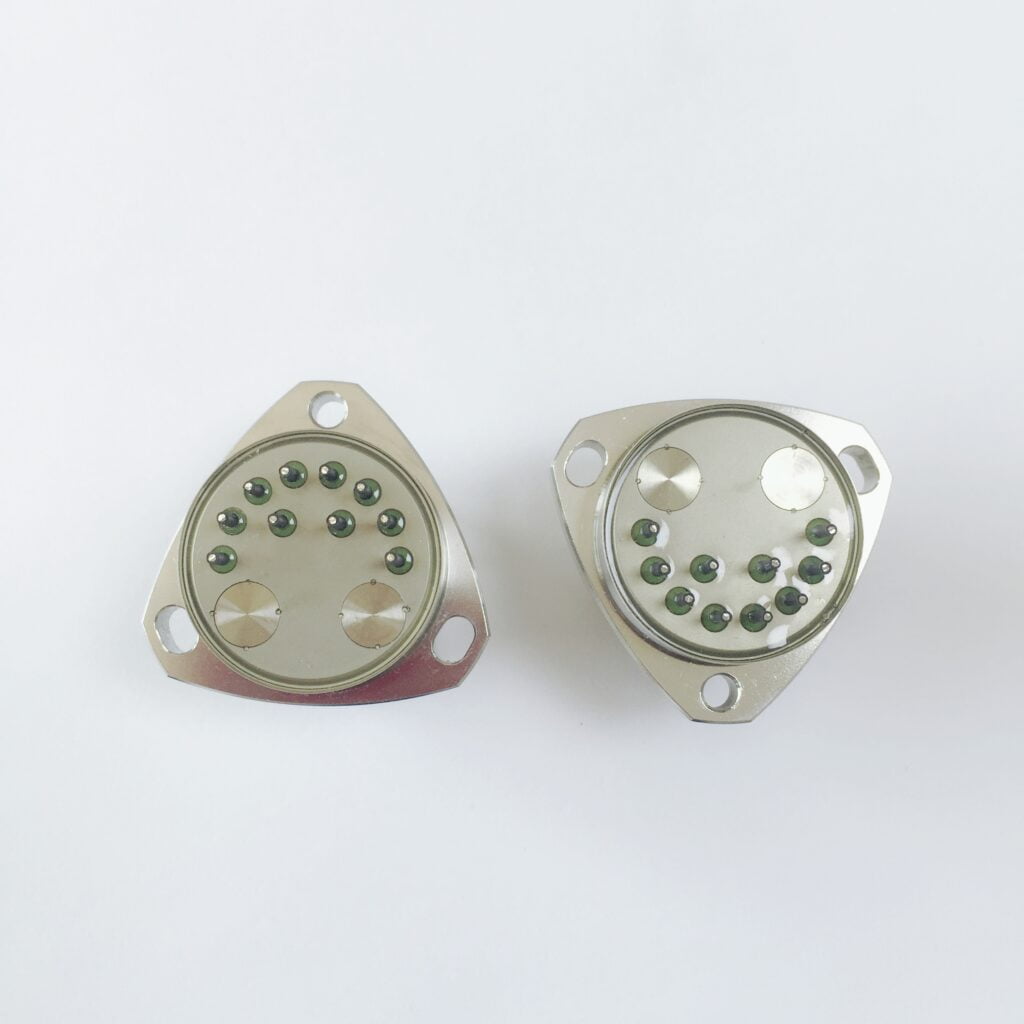

ER-QA-01A Aerospace Quartz Accelerometer
Application
ER-QA-01A Aerospace Quartz Accelerometer with high precision is used in carrier's microgravity measuring system, inertial navigation system, static angle measurement system.
Features
High Precision
High Performance
Specifications
No. | Parameter | ER-QA-01A3 | ER-QA-01A2 | ER-QA-01A1 | Unit |
0 | Threshold/Resolution | 5 | 5 | 5 | μg |
1 | Bias | ≤5 | ≤8 | ≤10 | mg |
2 | Scale Factor | 1.1~1.5 | 1.1~1.5 | 1.1~1.5 | mA/g |
3 | Second-order Non-linearity | ≤10 | ≤10 | ≤15 | μg/g² |
4 | Bias Temp Coefficient | ≤10 | ≤20 | ≤30 | μg/℃ |
5 | Scale Factor Temp Coefficient | ≤10 | ≤20 | ≤30 | ppm/℃ |
6 | Bias Repeatability | ≤10 | ≤20 | ≤30 | μg |
7 | Scale Factor Repeatability | ≤10 | ≤20 | ≤30 | ppm |
8 | Second-order Non-linearity Repeatability | ≤10 | ≤10 | ≤10 | μg/g² |
9 | Natural Frequency | ≤800 | ≤800 | ≤800 | Hz |
10 | Acceleration Range | ±20 | ±20 | ±20 | g |
11 | Vibration | 8 | 8 | 8 | grms |
12 | Shock | 120g, 4.5ms, 1/2sin | |||
13 | Operating Temp | -40~+80 | -40~+80 | -40~+80 | ℃ |
14 | Weight | ≤80 | ≤80 | ≤80 | g |
15 | Resolution | ≤5×10 -6 | ≤5×10 -6 | ≤5×10 -6 | g |
16 | Operating Voltage | ±12~±15 | ±12~±15 | ±12~±15 | v |

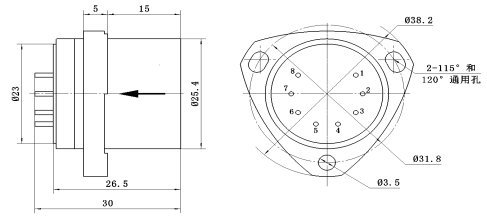

Dimension
Electrical interface

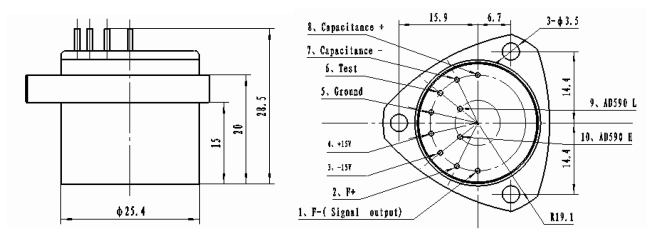

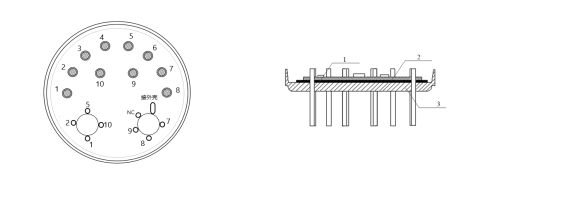

The servo circuit electrical interface relationships are shown in Table 1. The terminal arrangement and description should conform to the following diagram. The terminal arrangement is shown from the bottom view (pins facing upward).
Table 1 Servo circuit electrical interface relationship (AD590)
Lead-out terminal
Serial number |
symbol | Pin function | Lead-out terminal
Serial number |
symbol | Pin function |
1 | ML | Signal output terminal | 6 | Tse | Self-check terminal |
2 | MH | Current test terminal | 7 | C ext1 | Differential capacitance detection terminal 1 |
3 | V- | Negative power supply terminal | 8 | C ext2 | Differential capacitance detection terminal 2 |
4 | V+ | Positive power supply terminal | 9 | VO- | AD590 low-end |
5 | GND | ground | 10 | VO+ | Regulator positive output(AD590High-end) |
