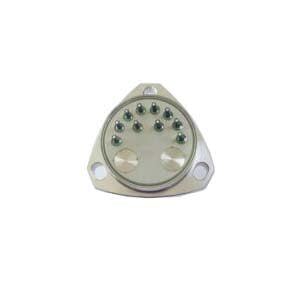

High Performance Quartz Accelerometer

High-Precision and Anti-Vibration Quartz Accelerometer for Aerospace

ER-QA-02A:
1. Bias repeatability: 60μg;
2. Scale factor repeatability: 60ppm;
3. Class II non-linearity repeatability: 50μg/g².

High-Precision and Anti-Vibration Quartz Accelerometer for Aerospace

High Performance Quartz Accelerometer

Get Price Now



    Share to:

    Introduction

    ER-QA-02A High-Precision And Anti-Vibration Quartz Accelerometer

    Application
    ER-QA-02A High-Precision and Anti-Vibration Quartz Accelerometer for aerospace is suitable for the environment which has high requirement of circumstance and precision.

    Specifications

    No. Parameters ER-QA-02A02 ER-QA-02A01 Unit
    1 Bias ≤7 ≤7 mg
    2 Scale Factor 0.1~1.5 0.1~1.5 mA/g
    3 Second-order Non-linearity ≤50 ≤50 μg/g²
    4 Bias Temp Coefficient ≤50 ≤80 μg/℃
    5 Scale Factor Temp Coefficient ≤60 ≤80 ppm/℃
    6 Bias Repeatability ≤60 (3~7 days) ≤60 (one day) μg
    7 Scale Factor Repeatability ≤60 (3~7 days) ≤60 (one day) ppm
    8 Second-order Non-linearity Repeatability ≤50 (3~7 days) ≤50 (one day) g/g²
    9 Acceleration Range ±10 ±10 g
    10 Vibration 8 8 grms
    11 Shock 120g, 4.5ms, 1/2sin% 120g, 4.5ms, 1/2sin% g/ms
    12 Working Temperature -45~+100 -45~+100
    13 Weight ≤80 ≤80 g
    14 Working Voltage ±12~±15 ±12~±15 V

    Dimension

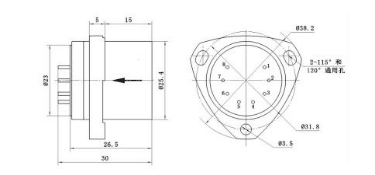

    25.4 Accelerometer Dimension

    Electrical interface

    The servo circuit electrical interface relationships are shown in Table 1. The terminal arrangement and description should conform to the following diagram. The terminal arrangement is shown from the bottom view (pins facing upward).

    Dimension Of Accelerometer

    Table 1 Servo circuit electrical interface relationship (AD590)

    Lead-out terminal

    Serial number

    symbol Pin function Lead-out terminal

    Serial number

    symbol Pin function
    1 ML Signal output terminal 6 Tse Self-check terminal
    2 MH Current test terminal 7 C ext1 Differential capacitance detection terminal 1
    3 V- Negative power supply terminal 8 C ext2 Differential capacitance detection terminal 2
    4 V+ Positive power supply terminal 9 VO- AD590 low-end
    5 GND ground 10 VO+ Regulator positive output(AD590High-end)
