ER-QA-02C Excellent Anti-Vibration and High-Temp Accelerometer For MWD
ER-QA-02C Excellent Anti-Vibration & High-Temp Accelerometer for MWD is specially applied for MWD and continuous north seeking systems, also can be widely used in other harsh working conditions.
Applications
MWD and continuous north seeking systems
Harsh working environment
Specifications
No. | Parameters | ER-QA-02C02 | ER-QA-02C01 | Unit |
1 | Bias | ≤10 | ≤15 | mg |
2 | Scale Factor | 2.5~3.5 | 2.5~3.5 | mA/g |
3 | Bias Temp Coefficient | ≤60 | ≤100 | ug/℃ |
4 | Scale Factor Temp Coefficient (20~120℃) | ≤120 | ≤150 | ppm/℃ |
5 | Scale Factor Temp Coefficient (120-150℃) | ≤200 | ≤500 | ppm/℃ |
6 | Bias Repeatability | ≤100 | ≤100 | μg |
7 | Scale Factor Repeatability | ≤100 | ≤100 | ppm |
8 | Acceleration Range | ±10 | ±10 | g |
9 | Vibration | 20g (20~2000)Hz | 20g (20~2000)Hz | g, Hz |
10 | Shock | 1000g, 0.5ms, 1/2sin | 1000g, 0.5ms, 1/2sin | g, ms |
11 | Operating Temp | -45~+150 | -45~+150 | ℃ |
12 | Weight | ≤30 | ≤55 | g |
13 | Operating Voltage | ±7~± 12 | ±7~± 12 | V |

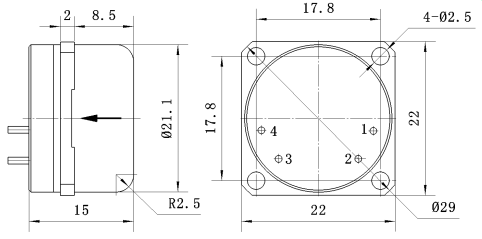

Install dimension:

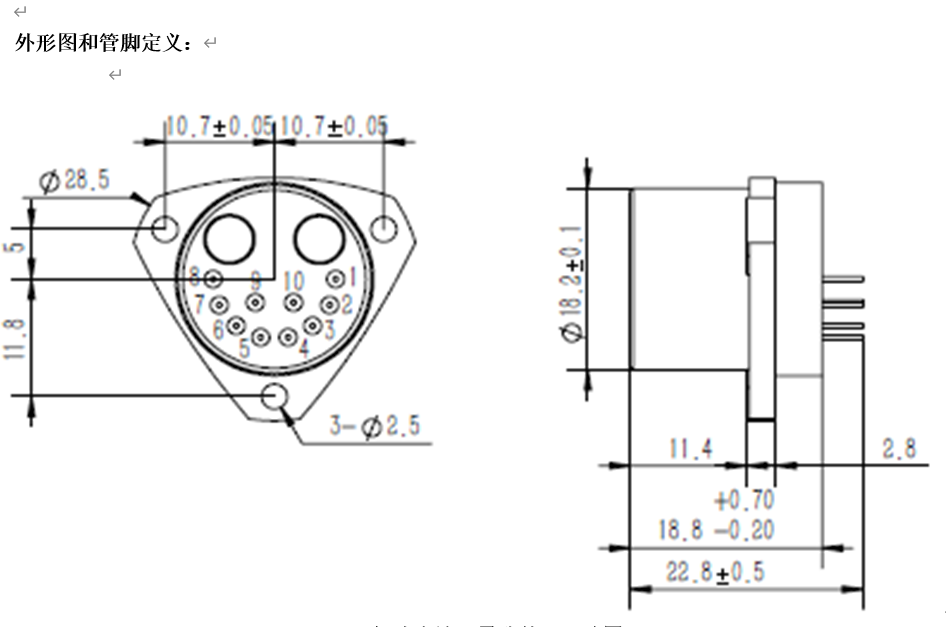

The electrical interface relationship of the servo circuit is shown in Table 1. The terminal arrangement and description should comply with the requirements of Figure 1. The terminal arrangement is a bottom view (pins upward).
Table 1 Servo circuit electrical interface relationship
Pinout
Serial Number |
symbol | Pin function | Pinout
Serial Number |
symbol | Pin function |
1 | ML | Signal output terminal | 6 | Tse | PT1000 First End |
2 | MH | Current test terminal | 7 | C ext1 | Differential capacitance detection terminal 1 |
3 | V- | Negative power supply terminal | 8 | C ext2 | Differential capacitance detection terminal 2 |
4 | V+ | Positive power supply terminal | 9 | VO- | PT1000 second terminal |
5 | GND | ground | 10 | VO+ | Regulator positive output(+9V) |
