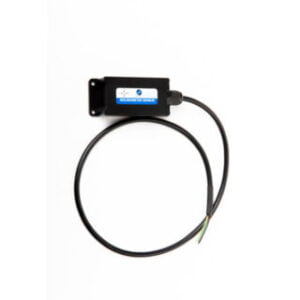

Voltage Type Two-Axis Two-Way Tilt Switch

ER-TS-06 Features:
1. Range 0~±90°(optional);
2. Full range accuracy 0.1°, resolution 0.01°;
3. Alarm threshold can be set by the users.

Share to:

Introduction

Voltage Type Two-Axis Two-Way Tilt Switch

Introduction
ER-TS-06 is a two-axis four-way digital dip switch with high performance voltage output. The measuring range of the product is 0~±90°. When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.
The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light. The product is used in industries related to horizontal security alarm and platform level monitoring. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

Features
Biaxial tilt monitoring
Full range accuracy 0.1°, resolution 0.01°
Alarm threshold can be set by the user
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Range 0~±90°(optional)
High vibration resistance>3500 g
Industrial grade design
IP67 protection level
Switching output (voltage), RS232 output at the same time
Volume (90*40*27mm) (customizable)

Applications
Railway gauge
Satellite solar antenna positioning
Tractor, deep tillage machinery
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams

Specifications

Parameters	Conditions	ER-TS-06	Unit
Measuring range	/	±90	°
Measurement of shaft	/	X, Y axis	/
Alarm shaft	/	X, Y axis	/
Frequency response	DC response	100	Hz
Resolution	Bandwidth 5Hz	0.01	°
Precision	-40~85℃	0.1	°
Long-term stability	-40~85℃	0.1	°
Power on start time	/	0.5	S
Output signal	Switching volume (voltage) output, RS232, RS485, TTL optional at the same time
Average working time	≥55,000 hours/time
Impact resistant	3500g, 0.5ms, 3 times/shaft
Shock resistant	10grms, 10~1000Hz
Insulation resistance	≥100MΩ
Waterproof level	IP67
Cable	Standard 1.5m length, wear resistance, oil proof, wide temperature, shielding cable 8*0.3mm²
Weight	150g (excluding boxes)

Electrical parameters

Parameters	Condition	Min	Typical values	Max	Unit
The power supply voltage	/	9	12	36	V
Working current	/	/	20	/	mA
Normally closed maximum current	/	/	1000	/	mA
Working temperature	/	-40	/	85	℃
Storage temperature	/	-55	/	100	℃
