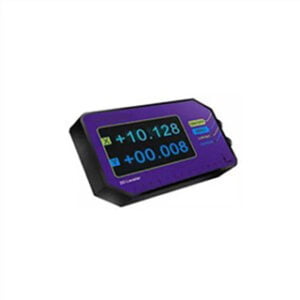

Dual Axis Digital Display Tilt Sensor

ER-DDTS-16 Features:
1. High resolution: 0.01°;
2. Low range 0~+ 90 °;
3. Built-in rechargeable industrial battery.

Share to:

Introduction

Dual Axis Digital Display Tilt Sensor

Introduction
ER-DDTS-16 is a digital display inclinometer for angle control and measurement in various industrial sites. It can be directly used by engineers by means of external inclinometer or built-in inclinometer unit.
ER-DDTS-16 biaxial digital display inclinometer has fast response speed and stable data. The product is small in size and has a variety of working modes, that is, it can be matched with our tilt sensor and transmission mode (wired or wireless optional). Just like the following, wireless bluetooth<10m, zigbee<250m (optional); 1.5m wired standard (can be customized); RS232<:25m, RS485<500m. The product is easy to operate and provides a zero adjustment function, which is convenient for practical applications and industrial fields.

Features
High resolution: 0.01°
Low range 0~+90 °
Built-in rechargeable industrial battery
Wide temperature working -40~+85℃
High seismic performance＞20000g
Zero setting function
A variety of combinations
IP65 protection level
Wired and wireless transmission (optional)
Small volume (140*120*45mm) (customizable)

Applications
Test the braking performance of motor vehicles
Road platform measurement
Instrument calibration and calibration
Mining machinery, oil logging equipment
Mechanical installation
Tilt detection
Tilt detection of geological equipment
Tilt based monitoring
Various construction machinery angle detection
Inspection of bridges and dams

Specifications

Parameter	Condition	ER-DDTS-16-15	ER-DDTS-16-30	ER-DDTS-16-60	ER-DDTS-16-90	Unit
Measuring range	/	±15	±30	±60	±90	°
Measurement of shaft	/	X, Y Axis	X, Y Axis	X, Y Axis	X,Y Axis	/
Zero temperature drift	-25~85°	±0.008	±0.008	±0.008	±0.008	°/℃
Sensitivity temperature coefficient	-25~85°	≤150	≤150	≤150	≤150	ppm/℃
Frequency response	DC response	100	100	100	100	Hz
The resolution of the	Bandwidth 10Hz	0.01	0.01	0.01	0.01	°
Precision	-25~85℃	0.02	0.03	0.05	0.09	°
Power on start time	/	0.2	0.2	0.2	0.2	s
The response time	/	0.01	0.01	0.01	0.01	s
Working current	<40mA
Working humidity	85%RH
Average working time	≥55,000 hours per time
Impact resistant	20000g
Insulation resistance	≥100MΩ
Waterproof level	IP65
Cable	Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.2mm²
Weight	120g (No box included)

Electrical indicators

Parameters	Conditions	Min	Typical Value	Max	Unit
Power supply	DC power supply	7		35	V
Power supply	Options	Build in rechargeable battery			V
Working current	/	/	40	/	mA
Working temperature	/	-20	/	85	℃
Storage temperature	/	-40	/	100	℃
