ER-MIMU-05 (0.02º/h) Features:
1. Measuring range 100º/s;
2. Bias instability (Allan variance)0.02º/h;
3. Light weight.

High Accuracy North-Seeking MEMS IMU

Low Cost MEMS Inertial Measurement Unit

Get Price Now



    Share to:

    Introduction

    Parameters of High Accuracy North-Seeking MEMS IMUApplication of High Accuracy North-Seeking MEMS IMUIntroduction of High Accuracy North-Seeking MEMS IMU

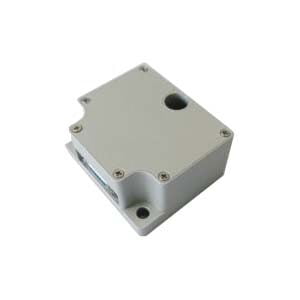

    High Accuracy North-Seeking MEMS IMU

    Introduction
    Inertial Measurement Unit, referred to as IMU, is a device to measure the attitude angle (or angular velocity) and acceleration of the three axis of the object. Gyroscope and accelerometer are the core devices of inertial navigation system (INS). With the built-in accelerometer sensor and gyroscope, the IMU can measure the linear acceleration and rotation angular velocity from three directions and can obtain the attitude, velocity and displacement information of the carrier through the resolving.
    ER-MIMU-05 uses MEMS accelerometer and gyroscope with high quality and reliability, RS422 and external communication, baud rate can be flexibly set between 230400~921600, through the communication protocol to set the user's required communication baud rate. With X, Y, Z three-axis precision gyro, X, Y, Z three-axis accelerometer with high resolution, can be output by RS422 X, Y, Z three axis of gyroscope and accelerometer's original hexadecimal complement data (including gyro hexadecimal complement the numerical temperature, angle, the accelerometer hexadecimal temperature, the acceleration hexadecimal complement number); It can also output float dimensionless values of the gyroscope and accelerometer processed by the underlying calculation.

    Application
    North seeking in logging tools/gyro tools
    Pointing, steering and guiding in advanced mining/drilling equipment
    Initial alignment in weapon/UAV launch systems
    Direction pointing and tracking in satellite antenna, target tracking system
    Guidance and navigation in navigation grade MEMS weapon system
    Orientating and positioning in railway train system
    Precision platform attitude measuring and controls
    Precision attitude, position measuring in navigation grade MEMS IMU/INS
    North finding and positioning in land surveying/land mobile mapping system
    Petroleum exploration
    Bridge, tall building, tower, dam monitoring
    Rock and soil monitoring
    Mining

    Features

    Volume:38.6mm x 44.8mm x25.5mm ;
    6V power supply, low power consumption 2W;
    Light weight: ≤70g;
    Products include X, Y, Z three-axis MEMS gyro and X, Y, Z three-axis MEMS accelerometer;
    RS422 bus communication, baud rate from 230400~921600 can be set.

    Specifications

    ItemParameterUnit
    Gyro performance
    Range100deg/s
    Bandwidth (-3dB)12Hz
    Scale Factor at 25°C80000LSB/deg/s
    Scale Factor Repeatability (1σ)<50ppm
    Scale Factor VS Temperature (1σ)300ppm
    Scale Factor Non-Linearity (1σ)<200ppm
    Bias Instability<0.02deg/hr
    Bias stability (10s 1σ)<0.1deg/hr
    Angular Random Walk<0.005°/√h
    Bias error over temperature (1σ)3deg/hr
    Bias temperature variations, calibrated (1σ)<0.3deg/hr
    Bias Repeatability (1σ)<0.1deg/hr
    Accelerometer performance
    Range30g
    Bandwidth100Hz
    Bias Stability (1s)(1σ)<30ug
    Bias Repeatability200-500ug
    Bias Temp Coefficient<20ug/℃
    Bias Temp Hysteresis<0.5mg
    Factor Scale Non-linearity<500ppm
    Factor Scale Repeatability<300ppm
    Factor Scale Temp Coefficient10ppm/℃
    Class II Non-linearity Coefficient<100ug/g2
    Factor Scale400000-800000μg/LSB
    System Performance
    Supply Voltage6~12V
    Supply Consumption2W
    InterfaceRS422
    Vibration6.06g (10~2000Hz)
    Shock5000g, 0.1ms
    Operate Temp-40℃~ + 80℃
    Storage Temp-55℃~ + 105℃
    Weight≤70g

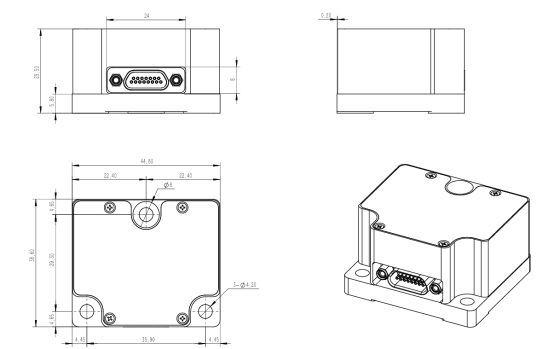

    Size38.6mm x 44.8mm x25.5mm
