High-precision Stable-Controlled MEMS IMU
Introduction
The Inertial Measurement Unit (IMU) is a device that measures the three-axis attitude angles (or angular velocities) and accelerations of an object. Gyroscopes and accelerometers are the core components of an Inertial Navigation System (INS). By integrating the built-in accelerometers and gyroscopes, the IMU can measure the three-axis linear accelerations and three-axis rotational angular velocities, and obtain the information of the carrier's attitude, velocity and displacement through analysis.
The ER-MIMU-183 uses high-quality and highly reliable MEMS accelerometers and gyroscopes.
Feature
Size:65*51*35.5
Weight: 140g
-40~80°C temperature compensation
Gyro bias instability: <0.1deg/hr
Gyro bias stability (10s 1σ): <1deg/hr
Gyro angular random walk: <0.05 °/√h
Accelerometer bias repeatability: 100ug
Accelerometer bias stability (10s) (1σ): <50ug
Accelerometer class II non-linearity coefficient: <100ug/g²
Application
Stabilization of Cameras & Platforms
Azimuth, attitude, position measuring and keeping in GNSS-assisted INS
Pitch, roll measuring in AHRS for UAV
Motion survey and keeping in MRU
Attitude & azimuth keeping, positioning in IMU
Guidance, navigation, control in tactical MEMS system
Stabilizing in satellite antenna, target tracking system
Robotic Control & Orientation in autonomous machines, Unmanned vehicles
Specification
Item | Parameter | Unit | ||
Gyro performance | A | B | C | |
Range | 400 | 400 | 400 | deg/s |
Scale Factor at 25°C | 16000 | 20000 | 20000 | LSB/deg/s |
Scale Factor Repeatability (1σ) | <50 | <100 | <50 | ppm |
Scale Factor VS Temperature (1σ) | 300 | 500 | 500 | ppm |
Scale Factor Non-Linearity (1σ) | <300 | <300 | <300 | ppm |
Bias Instability(1σ 25℃) | <0.3 | <0.3 | <0.1 | deg/hr |
Bias stability (10s 1σ) | <3 | <2 | <1 | deg/hr |
Angular Random Walk | <0.125 | <0.125 | <0.05 | °/ √h |
Bias Repeatability(1σ 25℃) | <3 | <2 | <1 | deg/hr |
Accelerometer performance | ||||
Range | 30 | g | ||
Bias Stability (10s 1σ) | <50 | ug | ||
Bias Repeatability | 100 | ug | ||
Bias Temp Coefficient | <20 | ug/℃ | ||
Bias Temp Hysteresis | <1.5 | mg | ||
Scale Factor Non-linearity | <500 | ppm | ||
Scale Factor Month Repeatability | <30 | ppm | ||
Scale Factor Temp Coefficient | 10 | ppm/℃ | ||
Class II Non-linearity Coefficient | <100 | ug/g² | ||
Scale Factor | 250000 | Lsb/g | ||
Environment and power | ||||
Operate temperature | -40~+80 | ℃ | ||
Storage temperature | -55~+105 | ℃ | ||
Power supply | 6~12V | V | ||
Power (power supply 6V) | 2 | W | ||
Communication interface | RS-422 | |||
Physical characteristics | ||||
Size | 65*51*35.5 | mm | ||
Weight | 140 | g |

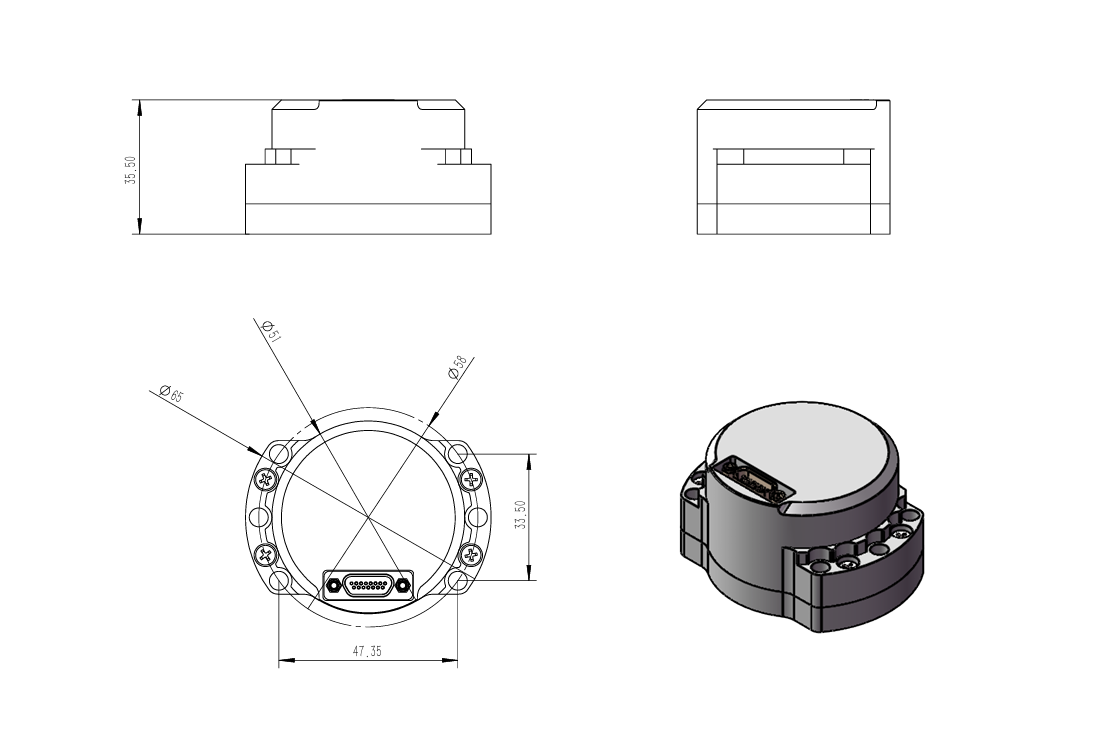

Dimension
