High Precision Navigation MEMS Gyroscope

High Accuracy Single-Axis MEMS Gyro

ER-MG-057 (1°/h)
1. 1°/hr bias instability;
2. 0.2°/√hr angular random walk;
3. 4°/hr bias stability.

High Accuracy Single-Axis MEMS Gyro

High Precision Navigation MEMS Gyroscope

Get Price Now



    Share to:

    Introduction

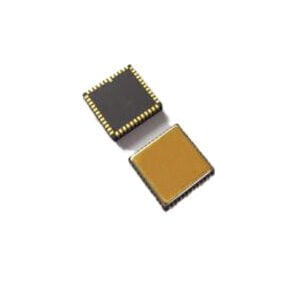

    ER-MG-057 High Accuracy Single-Axis MEMS Gyro

    Introduction
    ER-MG-057 is a single-axis MEMS angular rate sensor (gyroscope) capable of measuring angular velocity up to a maximum of ±400°/s with digital output compliant to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.
    ER-MG-057 is intended for industry, instrumentation, stabilization, and other high performance applications. An advanced, differential sensor design rejects the influence of linear acceleration, enabling the ER-MG-057 to operate in exceedingly harsh environments where shock and vibration are present.
    ER-MG-057 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−45°C to +85°C).

    Features
    Proven and robust silicon MEMS gyro
    Up to ±400°/s measurement range
    1°/hr bias instability
    0.2°/√hr angular random walk
    Digital output (SPI slave)
    5V operation (4.75~5.25V supply)
    Low power consumption (35 mA)
    High shock and vibration resistance
    Hermetically sealed ceramic LCC surface mount package (11 x 11 x 2mm)
    Integrated temperature sensor
    RoHS compliant

    Application
    Precision instrumentation, stabilization
    Guidance, navigation, control
    Avionics, unmanned vehicles
    Precision autonomous machines, robotics

    Specification

    Input Range 400 dps
    Bandwidth 200 Hz
    Data Output Rate 2K Hz
    Latency 2 ms
    Scale factor 20000 LSB/°/s
    Scale factor non-linearity 200 ppm
    Scale factor temp drift(1б) 500 ppm
    Bias temp drift (1б) 50 dph
    Bias temp drift (1б)

    (After Temp compensation)

    10 dph
    Bias instability 1 dph
    Bias stability (1б 10s) 4 dph
    Bias stability (1б 1s) 12 dph
    Run to Run Repeatability 4 dph
    RMS Noise (1-200Hz) 0.1 dps
    Random walk (ARW) 0.2 °/√h
    Start up time 0.8 s
    G-sensitivity 5 dph/g
    VRC 0.5 °/h/g²rms
    Shock 12g Rms
    Vibration 1000g 5ms 1/2 sine /
    Operation Temperature -45--85

    Application Techniques

    1.Comparative analysis of integrated modes of three-axis MEMS gyroscope
    2.Analysis of MEMS Gyroscope Drive Mode Control Loop

    3.System error and calibration of MEMS gyroscope

    4.MEMS Gyroscope: Sensitive Structure | Detection Circuit | Integrated Package

    5.MEMS Gyroscope: Error Compensation By Allan Variance Method

    6.MEMS Gyroscope: The Third Generation Of Gyroscopes Is Leading The Way
