MEMS Directional Module For Mining Well-Trajectory Measurement Device

ER-MNS-09:
1.Revolutionary miniaturization (ø30mm/ø25.4mm/ø18.6mm) allows seamless integration into narrow probe spaces;
2.Adopt the latest three-axis MEMS gyro, three-axis MEMS accelerometer strapdown inertial measurement technology;
3.Full solid-state design, built-in inner platform, excellent impact and vibration resistance, and resistant to harsh environments;

Share to:

Introduction

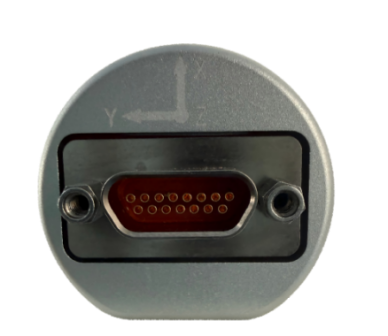

The ER-MNS-09 is a MEMS gyroscopic directional module for well trajectory measurement device with a special-shaped cylindrical design. It uses high-precision MEMS gyroscope that can find the north by itself. It determines the geographic true north direction by measuring the earth's rotation component. It does not rely on the geomagnetic field and can work stably in underground mines, metal pipelines or strong electromagnetic environments.

It can realize azimuth measurement, real-time output of carrier attitude reference value and attitude holding function. It has strong anti-impact and vibration ability, small size, light weight and low power consumption, and is the most ideal equipment in the fields of mining, geophysical exploration, directional drilling, etc.

Features

Revolutionary miniaturization (ø30mm/ø25.4mm/ø18.6mm) allows seamless integration into narrow probe spaces;
Adopt the latest three-axis MEMS gyro, three-axis MEMSaccelerometer strapdown inertial measurement technology;
Full solid-state design, built-in inner platform, excellent impact and vibration resistance, and resistant to harsh environments;
4. With self-seeking north function, not affected by magnetic field;

Application

1.Orientation and attitude measurement of advanced mining/drilling equipment;

2.Direction and trajectory control of non-excavation underground hidden engineering pipeline tracking and mapping;

3.Pipeline laying through and across operations in HDD;

4.Provide reference direction for total station and pointing instrument in tunnel construction;

5.Find north positioning in land surveying/land mobile mapping system.

Specification

Model	ER-MNS-09A	ER-MNS-09B		ER-MNS-09HA			ER-MNS-09HB
Azimuth accuracy(1σ, °secψ)	1		0.5	1		0.5
Attitude accuracy(1σ, °)	≤0.2
Azimuth accuracy retaining time	20min
Attitude accuracy retaining time	20min
Azimuth measurement range(°)	0~360
Inclination measurement range(°)	-85~85
North-seeking time	3min
North-seeking method	stationary
Update rate (Hz)	100
Power supply and working environment
Operating temperature(℃)	5~+55				5~+125
Storage temperature(℃)	0~+65				0~+130
Wide voltage (V)	6~12V
Power(W)	3
Communication interface	RS-422
Appearance characteristics

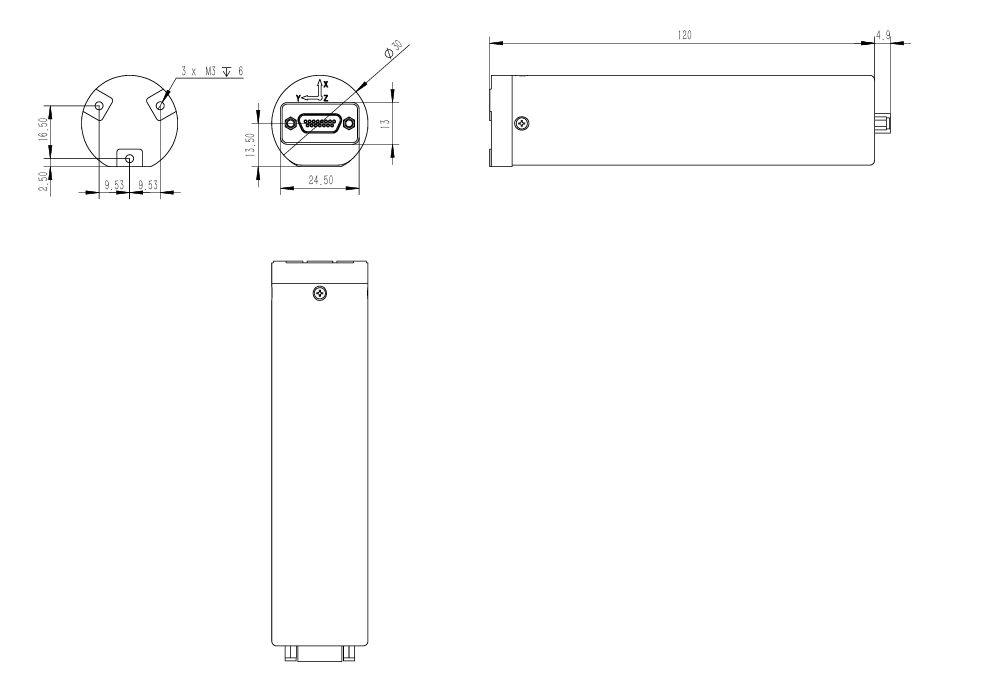

Size (mm×mm)	Option A: Φ30mm x 120mm Option B: Φ25.4mm x 120mm Option C: Φ18.6mm x 120mm
Weight(g)	≤150g
