Global Navigation Satellite System(GNSS)

ER220-III NV Module

ER220-III NV Module

Features:
1.BDS / GPS dual-mode positioning module;
2.Low power consumption, very suitable for positioning performance.
...
Chat Now



ER220-III NV BDS / GPS dual-mode positioning module for pre-installed market. ER220-III NV is the third generation product of ER220 series module. It is a low-power GNSS SoC chip with completely independent intellectual property rights - HumbirdTMUC220, which is the smallest fully finished BDS / GPS positioning module on the market. , Low power consumption, very suitable for positioning performance, product reliability and high quality requirements of the GNSS scale applications.



Product advantages

• Car-level products, the chip in line with AEC-Q100, production in line with TS16949

• Excellent navigation and positioning capabilities, support single system independent  positioning and multi-system joint positioning

• High sensitivity design

• Support for A-GNSS

• Low power consumption, small size

• Compatible with mainstream GPS modules to save replacement costs

• SMD surface mount package for customer production



Technical indicators

Performance

Channel:  based on 64-channel HumbirdTM chip     positioning accuracy 1                             2.5m CEP (dual system level)

Frequency:   BDS B1                                                                                                                 2.0m CEP (SBAS level)

                     GPS L1                                               Speed Accuracy 1 (RMS)                          GNSS / GPS: 0.1m / s

Positioning mode: Single system independent positioning                                                         BDS: 0.2m / s



                             Multi-system joint positioning             1PPS                                                    support

First time (TTFF):   Cold start: 30s                                Sensitivity                                                           BDS         GPS



                              Hot start: 1s                                                                                        tracking     -160dBm      -160dBm



                             Re-capture: <1s                                                                                  capture      -145dBm      -147dBm



                            Data update rate: 1Hz                                                        hot start / recapture    -154dBm      -154dBm



Physical properties

Size: 6.0x12.2x2.4mm

Package: 24-pin, SMD surface mount

Operating temperature:  -40°C to + 85° C

Storage temperature:  -45°C to + 90°C


Electrical indicators

Voltage: 2.7V ~ 3.6V DC

LNA Feed: 2.7V ~ 3.3V, <100mA

Power consumption 2: 120mW


Function interface

Data Interface: 2 x UART / 1 x I2C / 1 x SPI

                        1 x event input

                        1 x 1PPS output

                         NMEA 0183 (compatible with Big Dipper)

                         Unicore


Features:

Active antenna, passive antenna, A - GNSS *

Note: Note * part of the optional configuration 1 typical, <30m / s open sky 2open sky, continuous tracking

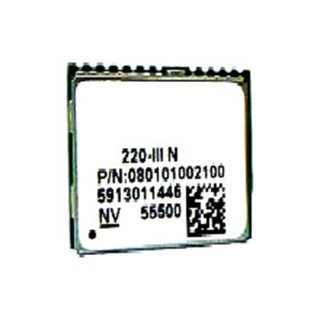

 ER220-III NV Module.jpg

If interested,pls contact us info@ericcointernational.com


ERICCO is expert in high quality borehole wireless mwd manufacturing and selling, who is one of the best manufacturers and suppliers of borehole wireless mwd with high precision. We have a professional team at your service.
